DRV2625 - Ultra Low Power Closed-Loop LRA/ERM Haptic Driver

Name: DRV2625
SKU: DRV2625-1405405

Texas Instruments

📥 Download Datasheet

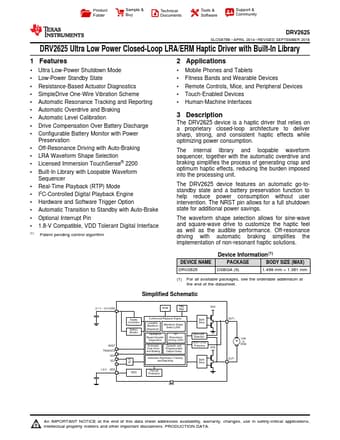

DRV2625 Datasheet Preview — Preview of DRV2625 PDF

Datasheet Details

Part number	DRV2625
Manufacturer	Texas Instruments
File Size	4.27 MB
Description	Ultra Low Power Closed-Loop LRA/ERM Haptic Driver
Datasheet	DRV2625-etcTI.pdf

DRV2625 Product details

Description

The DRV2625 device is a haptic driver that relies on a proprietary closed-loop architecture to deliver sharp, strong, and consistent haptic effects while optimizing power consumption.

Features

1 Ultra Low-Power Shutdown Mode.
Low-Power Standby State.
Resistance-Based Actuator Diagnostics.
SimpleDrive One-Wire Vibration Scheme.
Automatic Resonance Tracking and Reporting.
Automatic Overdrive and Braking.
Automatic Level Calibration.
Drive Compensation Over Battery Discharge.
Configurable Battery Monitor with Power Preservation.
Off-Resonance Driving with Auto-Braking.
LRA Waveform Shape Se.
