DRV5013-Q1 Automotive Digital-Latch Hall Effect Sensor

DRV5013-Q1 Description

DRV5013-Q1 SLIS162I * DECEMBER 2014 * REVISED FEBRUARY 2023 DRV5013-Q1 Automotive, Digital-Latch Hall Effect Sensor 1 .
The DRV5013-Q1 device is a chopper-stabilized Hall effect sensor that offers a magnetic sensing solution with superior sensitivity stability over tem.

DRV5013-Q1 Applications

* DRV5013xxQ grade 1: TA =
* 40°C to 125°C (see Device Nomenclature)
* DRV5013xxE grade 0: TA =
* 40°C to 150°C (see Device Nomenclature)
* Digital bipolar-latch Hall sensor
* Superior temperature stability
* BOP ±10% over temperature

📥 Download Datasheet

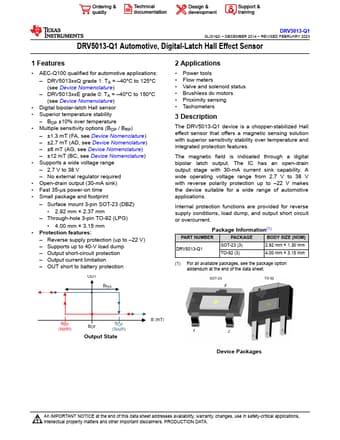

Preview of DRV5013-Q1 PDF
datasheet Preview Page 2 datasheet Preview Page 3
