DRV8301-Q1

Automotive Three-Phase Gate Driver

DRV8301-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Tested With the Following Results:

* Device Temperature Grade 1:

* 40°C to 125°C Ambient Operating Temperature Range

* Device HBM ESD Classification Level 2

* Device CDM ESD Classification Level C4A

DRV8301-Q1 General Description

The DRV8301-Q1 device is an automotive gate driver IC for three phase motor drive applications. The device provides three half bridge drivers, each capable of driving two N-type MOSFETs, one for the high-side and one for the low side. The device supports up to 2.3-A sink and 1.7-A source peak curren.

DRV8301-Q1 Datasheet (1.90 MB)

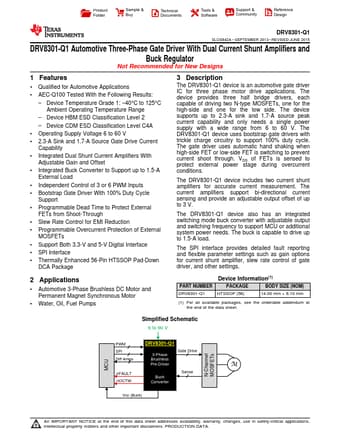

Preview of DRV8301-Q1 PDF

Datasheet Details

Part number:

DRV8301-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.90 MB

Description:

Automotive three-phase gate driver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design DRV8301-Q1 SLOS842A

* SEPTEMBER 20.
