DRV8311P

Three-Phase PWM Motor Driver

DRV8311P Features

* Three-phase PWM motor driver

* 3-Phase brushless DC motors

* 3-V to 20-V operating voltage

* 24-V Absolute maximum voltage

* High output current capability

* 5-A Peak current drive

* Low on-state resistance MOSFETs

* 210-mΩ typ RDS(ON

DRV8311P General Description

The DRV8311 provides three integrated MOSFET half-H-bridges for driving a three-phase brushless DC (BLDC) motor for 5-V, 9-V, 12-V, or 18-V DC rails or 1S to 4S battery powered applications. The device integrates three current-sense amplifiers (CSA) with integrated current sense for sensing the thr.

DRV8311P Datasheet (2.89 MB)

Preview of DRV8311P PDF

Datasheet Details

Part number:

DRV8311P

Manufacturer:

Texas Instruments ↗

File Size:

2.89 MB

Description:

Three-phase pwm motor driver.

📁 Related Datasheet

DRV8311 - Three-Phase PWM Motor Driver (Texas Instruments)

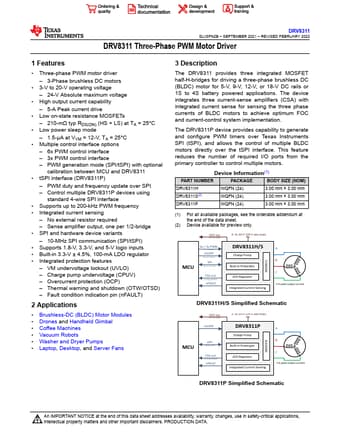

DRV8311 SLVSFN2B – SEPTEMBER 2021 – REVISED FEBRUARY 2022 DRV8311 Three-Phase PWM Motor Driver 1 Features • Three-phase PWM motor driver – 3-Phase br.
