DRV8312

Three-Phase PWM Motor Driver

Texas Instruments

DRV8312 Features

* High-Efficiency Power Stage (up to 97%) With Low RDS(on) MOSFETs (80 mΩ at TJ = 25°C)

* Operating Supply Voltage up to 50 V (70-A Absolute Maximum)

* DRV8312 (Power Pad Down): up to 3.5-A Continuous Phase Current (6.5-A Peak)

* DRV8332 (Power Pad Up): up to 8-A Cont

DRV8312 General Description

The DRV83x2 are high-performance, integrated threephase motor drivers with an advanced protection system. Because of the low RDS(on) of the power MOSFETs and intelligent gate drive design, the efficiency of these motor drivers can be up to 97%. This high efficiency the use of smaller power supplie.

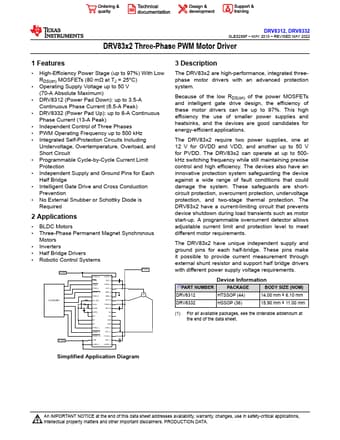

DRV8312 Datasheet (2.96 MB)

DRV8312 Datasheet Preview — Preview of DRV8312 PDF

Datasheet Details

Part number:

DRV8312

Manufacturer:

Texas Instruments ↗

File Size:

2.96 MB

Description:

Three-phase pwm motor driver.
