DS320PR410

Four-Channel Linear Redriver

DS320PR410 Features

* Four-channel linear redriver supporting PCIe™ 5.0, CXL 2.0, UPI 2.0 up to 32 Gbps

* Supports most ac coupled interfaces including DP, SAS, SATA, XFI

* CTLE boosts up to 22 dB at 16 GHz

* Ultra-low latency of 100 ps

* Low additive random jitter of 45 fs for P

DS320PR410 General Description

The DS320PR410 is a four-channel low-power highperformance linear repeater or redriver designed to support PCIe 5.0, CXL 2.0, UPI 2.0, and other interfaces up to 32 Gbps. The DS320PR410 receivers deploy continuous time linear equalizers (CTLE) to provide a programmable high-frequency boost. The eq.

DS320PR410 Datasheet (2.41 MB)

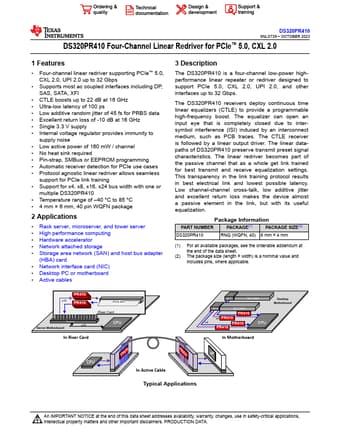

Preview of DS320PR410 PDF

Datasheet Details

Part number:

DS320PR410

Manufacturer:

Texas Instruments ↗

File Size:

2.41 MB

Description:

Four-channel linear redriver.
