DS3232 Extremely Accurate I2C RTC

DS3232 Description

AVAILABLE EVALUATION KIT AVAILABLE DS3232 Extremely Accurate I2C RTC with Integrated Crystal and SRAM General .
The DS3232 is a low-cost temperature-compensated crystal oscillator (TCXO) with a very accurate, temperature-compensated, integrated real-time clock (.

DS3232 Features

* Accuracy ±2ppm from 0°C to +40°C
* Accuracy ±3.5ppm from -40°C to +85°C
* Battery Backup Input for Continuous Timekeeping
* Operating Temperature Ranges Commercial: 0°C to +70°C Industrial: -40°C to +85°C
* 236 Bytes of Battery-Backed SRAM
* Low-Powe

DS3232 Applications

* FunctUiotilintyaPlowDeriaMgetrearsms GPS Typical Operating Circuit VCC RPU = tR / CB VCC VCC RPU SCL SDA RST μP PUSHBUTTON RESET RPU VCC SCL INT/SQW SDA 32kHz RST VBAT N. C. N. C. DS3232 N. C. N. C. N. C. N. C. N. C. N. C. N. C. GND N. C. N. C. Pin Configurations appear at end of data sheet. F

📥 Download Datasheet

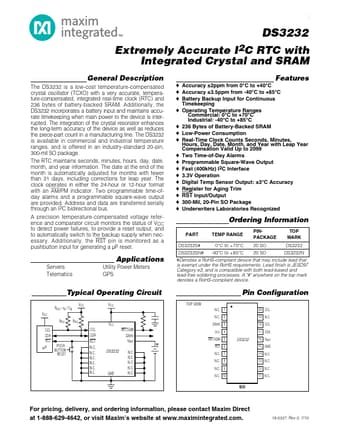

Preview of DS3232 PDF
