DS90CR584, DS90CR583 Datasheet - Texas Instruments

DS90CR584 LVDS

The DS90CR583 transmitter converts 28 bits of CMOS/TTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and.

DS90CR584 Features

* 1

* 2 20 to 65 MHz Shift clk Support

* Up to 227 Mbytes/s Bandwidth

* Cable Size is Reduced to Save Cost

* 290 mV Swing LVDS Devices for Low EMI

* Low Power CMOS Design (< 550 mW typ)

* Power-Down Mode Saves Power (< 0.25 mW)

* PLL Requires No E

DS90CR583-etcTI.pdf

This datasheet PDF includes multiple part numbers: DS90CR584, DS90CR583. Please refer to the document for exact specifications by model.

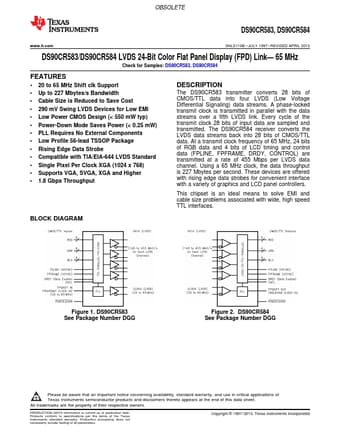

DS90CR584 Datasheet Preview Page 2 DS90CR584 Datasheet Preview Page 3
