DS90LV001

800-Mbps LVDS Buffer

DS90LV001 Features

* 1

* 2 Single +3.3 V Supply

* LVDS Receiver Inputs Accept LVPECL Signals

* TRI-STATE Outputs

* Receiver Input Threshold < ±100 mV

* Fast Propagation Delay of 1.4 ns (Typ)

* Low Jitter 800 Mbps Fully Differential Data Path

* 100 ps (Typ) of pk-pk

DS90LV001 General Description

The DS90LV001 LVDS-LVDS Buffer takes an LVDS input signal and provides an LVDS output signal. In many large systems, signals are distributed across backplanes, and one of the limiting factors for system speed is the "stub length" or the distance between the transmission line and the unterminated rec.

DS90LV001 Datasheet (1.04 MB)

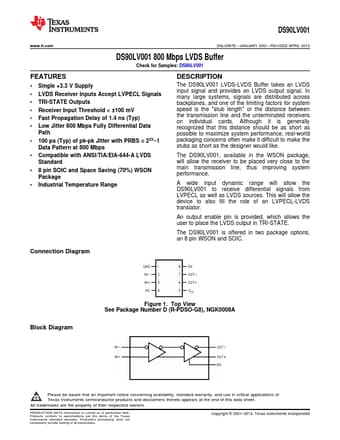

Preview of DS90LV001 PDF

Datasheet Details

Part number:

DS90LV001

Manufacturer:

Texas Instruments ↗

File Size:

1.04 MB

Description:

800-mbps lvds buffer.
DS90LV001 www.ti.com SNLS067E

* JANUARY 2001

* REVISED APRIL 2013 DS90LV001 800 Mbps LVDS Buffer Check for Samples: DS90LV001 FEAT.
