DS92LV0421

10-MHz to-75 MHz Channel Link-II Serializer/Deserializer

DS92LV0421 Features

* 1 5-Channel (4 Data + 1 Clock) Channel Link LVDS Parallel Interface Supports 24-Bit Data 3-Bit Control at 10 to 75 MHz

* AC-Coupled STP Interconnect Up to 10 m

* Integrated Terminations on Serializer and Deserializer

* At-Speed Link BIST Mode and Reporting Pin

DS92LV0421 General Description

The DS92LV042x chipset translates a Channel Link LVDS video interface (4 LVDS Data + LVDS Clock) into a high-speed serialized interface over a single CML pair. The DS92LV042x enables applications currently using popular Channel Link or OpenLDI LVDS style devices to upgrade seamlessly to an embedded .

DS92LV0421 Datasheet (1.79 MB)

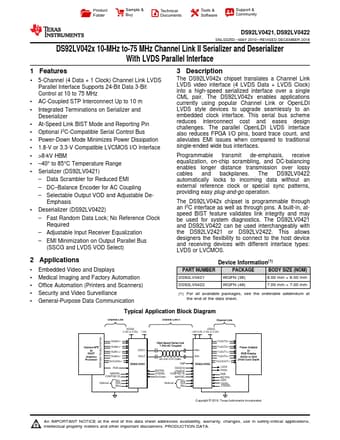

Preview of DS92LV0421 PDF

Datasheet Details

Part number:

DS92LV0421

Manufacturer:

Texas Instruments ↗

File Size:

1.79 MB

Description:

10-mhz to-75 mhz channel link-ii serializer/deserializer.
