FDC2114, FDC2212 Datasheet - Texas Instruments

FDC2114 Capacitance-to-Digital Converter

Capacitive sensing is a low-power, low-cost, highresolution contactless sensing technique that can be applied to a variety of applications ranging from proximity detection and gesture recognition to remote liquid level sensing. The sensor in a capacitive sensing system is any metal or conductor, all.

FDC2114 Features

* 1 EMI-Resistant Architecture

* Maximum Output Rates (one active channel):

* 13.3 ksps (FDC2112, FDC2114)

* 4.08 ksps (FDC2212, FDC2214)

* Maximum Input Capacitance: 250 nF (at 10 kHz with 1 mH inductor)

* Sensor Excitation Frequency: 10 kHz to 10 MHz

FDC2212-etcTI.pdf

This datasheet PDF includes multiple part numbers: FDC2114, FDC2212. Please refer to the document for exact specifications by model.

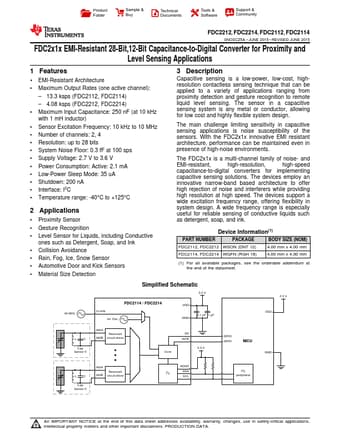

FDC2114 Datasheet Preview Page 2 FDC2114 Datasheet Preview Page 3
