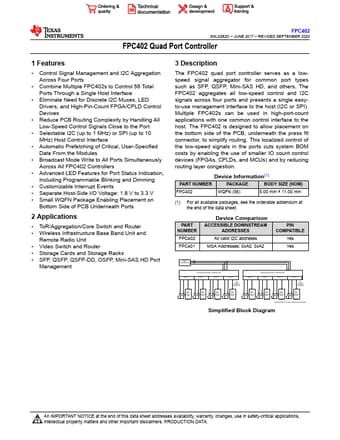

FPC402 Datasheet Preview — Preview of FPC402 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: FPC402
Manufacturer: Texas Instruments ↗
File Size: 1.75 MB
Datasheet: FPC402-etcTI.pdf
Description: Quad Port Controller

FPC402 Product details

Description

The FPC402 quad port controller serves as a lowspeed signal aggregator for common port types such as SFP, QSFP, Mini-SAS HD, and others.

Features

Control Signal Management and I2C Aggregation Across Four Ports.
Combine Multiple FPC402s to Control 56 Total Ports Through a Single Host Interface.
Eliminate Need for Discrete I2C Muxes, LED Drivers, and High-Pin-Count FPGA/CPLD Control Devices.
Reduce PCB Routing Complexity by Handling All Low-Speed Control Signals Close to the Port.
Selectable I2C (up to 1 MHz) or SPI (up to 10 MHz) Host Control Interface.
Automatic Prefetching of Critica.
