FPC1011F Datasheet - FINGERPRINTS

Area Sensor

FPC1011F Features

* Fingerprint area sensor

* NEW hard and scratch resistant protective surface coating

* Superior image quality

* 3D image with 256 true gray scale values

* Ergonomic frame for optimized finger guidance

* High speed SPI interface or Parallel interface

FPC1011F General Description

FPC1011F is a new compact CMOS fingerprint sensor with several significant advantages. FPC1011F deliveries superior image quality, with 256 gray scale values in every single pixel. The reflective measurement method sends an electrical signal via the frame directly into the finger. This technique ena.

FPC1011F Datasheet (2.28 MB)

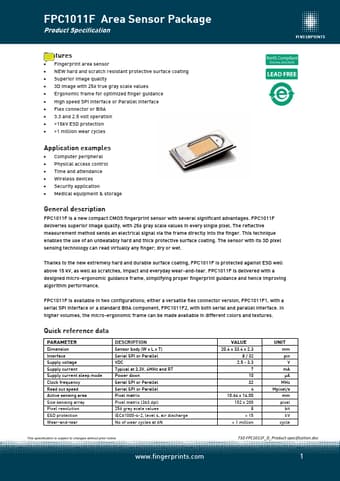

FPC1011F Datasheet Preview — Preview of FPC1011F PDF

Datasheet Details

Part number:

FPC1011F

Manufacturer:

FINGERPRINTS

File Size:

2.28 MB

Description:

Area sensor.
