HDC1000 Datasheet - Texas Instruments

HDC1000 High Accuracy Digital Humidity Sensor

The HDC1000 is a digital humidity sensor with integrated temperature sensor that provides excellent measurement accuracy at very low power. The device measures humidity based on a novel capacitive sensor. The humidity and temperature sensors are factory calibrated. The innovative WLCSP (Wafer Level .

HDC1000 Features

* 1 Relative Humidity (RH) Operating Range 0% to 100%

* 14 Bit Measurement Resolution

* Relative Humidity Accuracy ±3%

* Temperature Accuracy ±0.2 °C

* 200 nA Sleep Mode Current

* Average Supply Current:

* 820 nA @ 1sps, 11 bit RH Measurement

HDC1000 Datasheet (1.41 MB)

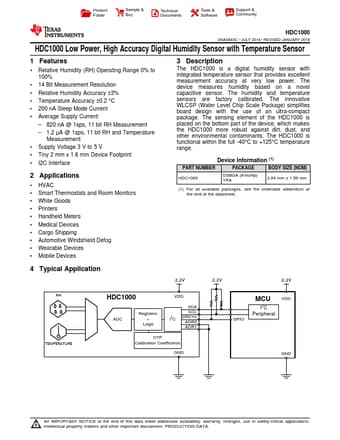

Preview of HDC1000 PDF
HDC1000 Datasheet Preview Page 2 HDC1000 Datasheet Preview Page 3

Datasheet Details

Part number:

HDC1000

Manufacturer:

Texas Instruments ↗

File Size:

1.41 MB

Description:

High accuracy digital humidity sensor.
