HDC1080 High Accuracy Digital Humidity Sensor

HDC1080 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design HDC1080 SNAS672A * NOVEMBER 2015 <.
The HDC1080 is a digital humidity sensor with integrated temperature sensor that provides excellent measurement accuracy at very low power.

HDC1080 Features

* 1 Relative Humidity Accuracy ±2% (typical)
* Temperature Accuracy ±0.2°C (typical)
* Excellent Stability at High Humidity
* 14 Bit Measurement Resolution
* 100 nA Sleep Mode Current
* Average Supply Current:
* 710 nA @ 1sps, 11 bit RH Measurem

HDC1080 Applications

* The humidity and temperature sensors are factory calibrated. PART NUMBER HDC1080 Device Information (1) PACKAGE BODY SIZE (NOM) PWSON (6-pin) DMB 3.00 mm x 3.00 mm (1) For all available packages, see the orderable addendum at the end of the datasheet. 2 Applications
* HVAC

📥 Download Datasheet

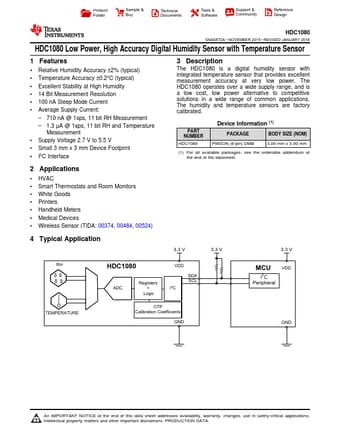

Preview of HDC1080 PDF
datasheet Preview Page 2 datasheet Preview Page 3
