INA180 Datasheet PDF (current-sense amplifiers) | Download Texas Instruments INA180

INA180 - current-sense amplifiers

Description

The INA180, INA2180, and INA4180 (INAx180) current sense amplifiers are designed for costoptimized applications.

Features

Common-mode range (VCM):.
0.2 V to +26 V.
High bandwidth: 350 kHz (A1 devices).
Offset voltage:.
±150 µV (maximum) at VCM = 0 V.
±500 µV (maximum) at VCM = 12 V.
Output slew rate: 2 V/µs.
Accuracy:.
±1% gain error (maximum).
1-µV/°C offset drift (maximum).
Gain options:.
20 V/V (A1 devices).
50 V/V (A2 devices).
100 V/V (A3 devices).
200 V/V (A4 devices).

Datasheet Details

Part number	INA180
Manufacturer	Texas Instruments
File Size	2.88 MB
Description	current-sense amplifiers
Datasheet	INA180 Datasheet

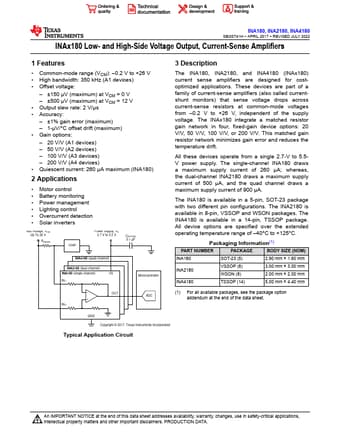

Additional preview pages of the INA180 datasheet.

📁 Similar Datasheet

INA101 - High Accuracy INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)

INA101 - Low-Power Instrumentation Amplifier (AnalogySemi)

INA102 - Low Power INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)

INA102 - Low-Power Instrumentation Amplifier (AnalogySemi)

INA103 - Low Noise/ Low Distortion INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)

INA104 - Very-High Accuracy INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)

INA105 - Precision Unity Gain DIFFERENTIAL AMPLIFIER (Burr-Brown Corporation)

INA106 - Precision Gain = 10 DIFFERENTIAL AMPLIFIER (Burr-Brown Corporation)

INA110 - Fast-Settling FET-Input INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)

INA111 - High Speed FET-Input INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)

Full PDF Text Transcription

Click to expand full text

INA180, INA2180, INA4180 SBOS741H – APRIL 2017 – REVISED JULY 2022 INAx180 Low- and High-Side Voltage Output, Current-Sense Amplifiers 1 Features • Common-mode range (VCM): –0.2 V to +26 V • High bandwidth: 350 kHz (A1 devices) • Offset voltage: – ±150 µV (maximum) at VCM = 0 V – ±500 µV (maximum) at VCM = 12 V • Output slew rate: 2 V/µs • Accuracy: – ±1% gain error (maximum) – 1-µV/°C offset drift (maximum) • Gain options: – 20 V/V (A1 devices) – 50 V/V (A2 devices) – 100 V/V (A3 devices) – 200 V/V (A4 devices) • Quiescent current: 260 µA maximum (INA180) 2 Applications • Motor control • Battery monitoring • Power management • Lighting control • Overcurrent detection • Solar inverters Bus Voltage, VCM Up To 26 V RSENSE Load Power Supply, VS 2.7 V to 5.5 V CBYPASS 0.
