ISO1212, ISO1211 Datasheet - Texas Instruments

ISO1212 24-V to 60-V Digital Input Receivers

The ISO1211 and ISO1212 devices are isolated 24-V to 60-V digital input receivers, compliant to IEC 61131-2 Type 1, 2, and 3 characteristics. These devices enable 9-V to 300-V DC and AC digital input modules in programmable logic controllers (PLCs), motor-control, grid infrastructure, and other indu.

ISO1212 Features

* 1 Compliant to IEC 61131-2; Type 1, 2, 3 characteristics for 24-V isolated digital inputs

* Supports 9-V to 300-V DC and AC digital input designs using external resistors

* Accurate Current Limit for Low-Power Dissipation:

* 2.2 mA to 2.47 mA for Type 3

* Adj

ISO1211-etcTI.pdf

This datasheet PDF includes multiple part numbers: ISO1212, ISO1211. Please refer to the document for exact specifications by model.

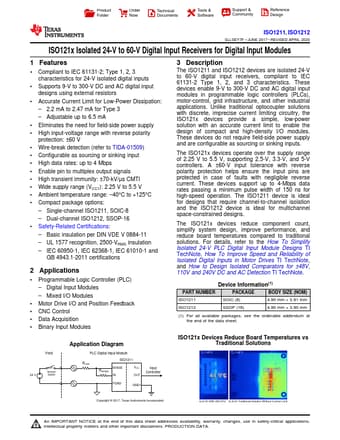

ISO1212 Datasheet Preview Page 2 ISO1212 Datasheet Preview Page 3

Datasheet Details

Part number:

ISO1212, ISO1211

Manufacturer:

Texas Instruments ↗

File Size:

1.77 MB

Description:

24-v to 60-v digital input receivers.

Note:

This datasheet PDF includes multiple part numbers: ISO1212, ISO1211.
Please refer to the document for exact specifications by model.
