ISO7320C Datasheet - Texas Instruments

ISO7320C, Dual-Channel Digital Isolators

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO7320C, ISO7320FC, ISO7321C, ISO7321FC SLLSEK8C * .
ISO732x provide galvanic isolation up to 3000 VRMS for 1 minute per UL and 4242 VPK per VDE.

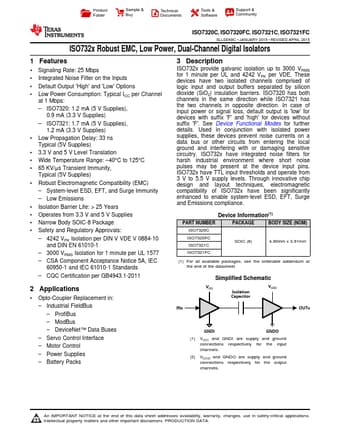

datasheet Preview Page 1 from Datasheet4u.com

ISO7320C-etcTI.pdf

ISO7320C Datasheet Preview — Preview of ISO7320C PDF

Datasheet Details

Part number:

ISO7320C

Manufacturer:

Texas Instruments ↗

File Size:

1.48 MB

Description:

Dual-Channel Digital Isolators

Features

* 1 Signaling Rate: 25 Mbps
* Integrated Noise Filter on the Inputs
* Default Output 'High' and 'Low' Options
* Low Power Consumption: Typical ICC per Channel at 1 Mbps:
* ISO7320: 1.2 mA (5 V Supplies), 0.9 mA (3.3 V Supplies)
* ISO7321: 1.7 mA (5 V Su

Applications

* Opto-Coupler Replacement in:
* Industrial FieldBus
* ProfiBus
* ModBus
* DeviceNet™ Data Buses
* Servo Control Interface
* Motor Control
* Power Supplies
