ISO7742 - Robust-EMC Reinforced Quad-Channel Digital Isolators

Product Overview

Texas Instruments

Datasheet Details

Part number	ISO7742
Manufacturer	Texas Instruments
File Size	2.23 MB
Description	Robust-EMC Reinforced Quad-Channel Digital Isolators
Datasheet	ISO7742 Datasheet
Note	This datasheet PDF includes multiple part numbers: ISO7742, ISO7740. Please refer to the document for exact specifications by model.

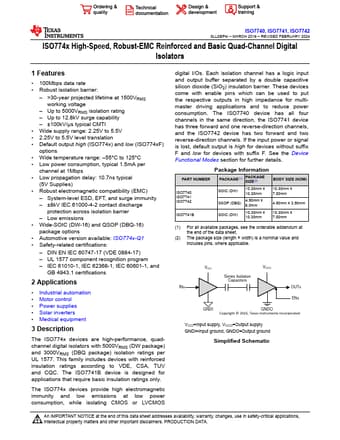

Additional preview pages of the ISO7742 datasheet.

Product details

Description

The ISO774x devices are high-performance, quadchannel digital isolators with 5000VRMS (DW package) and 3000VRMS (DBQ package) isolation ratings per UL 1577.

Features

100Mbps data rate.
Robust isolation barrier:.
>30-year projected lifetime at 1500VRMS working voltage.
Up to 5000VRMS isolation rating.
Up to 12.8kV surge capability.
±100kV/μs typical CMTI.
Wide supply range: 2.25V to 5.5V.
2.25V to 5.5V level translation.
Default output high (ISO774x) and low (ISO774xF) options.
Wide temperature range:.
55°C to 125°C.
Low power consumption, typical 1.5mA.
