LM139-SP - Quad Differential Comparator

Product Overview

Texas Instruments

Datasheet Details

Part number	LM139-SP
Manufacturer	Texas Instruments
File Size	316.40 KB
Description	Quad Differential Comparator
Datasheet	LM139-SP Datasheet

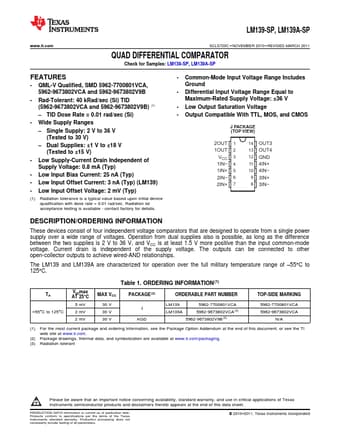

Additional preview pages of the LM139-SP datasheet.

Product details

Description

ORDERING INFORMATION These devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages.Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage.Current drain is independent of the supply voltage.The outputs can be connected to other open-collector outputs to achieve wired-AND relati

Features

1.
QML-V Qualified, SMD 5962-7700801VCA, 5962-9673802VCA and 5962-9673802V9B.
Rad-Tolerant: 40 kRad/sec (Si) TID (5962-9673802VCA and 5962-9673802V9B) (1).
TID Dose Rate = 0.01 rad/sec (Si).
Wide Supply Ranges.
Single Supply: 2 V to 36 V (Tested to 30 V).
Dual Supplies: ±1 V to ±18 V (Tested to ±15 V).
Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA (Typ).
Low Input Bias Current: 25 nA (Typ).
Low Inpu.
