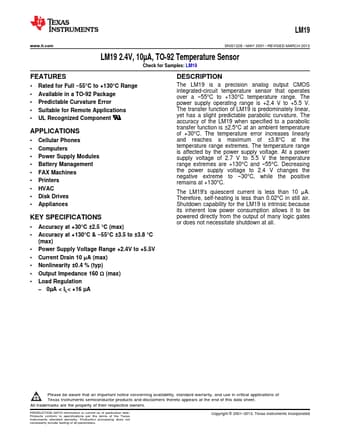

LM19 TO-92 Temperature Sensor

The LM19 is a precision analog output CMOS integrated-circuit temperature sensor that operates over a *55°C to +130°C temperature range. The power supply operating range is +2.4 V to +5.5 V. The transfer function of LM19 is predominately linear, yet has a slight predictable parabolic curvatu.

LM19 Features

* 1

* 2 Rated for Full

* 55°C to +130°C Range

* Available in a TO-92 Package

* Predictable Curvature Error

* Suitable for Remote Applications

* UL Recognized Component APPLICATIONS

* Cellular Phones

* Computers

* Power Supply Module

LM19 Datasheet (430.77 KB)
