LM231 - Precision Voltage-to-Frequency Converters

LM231 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM231, LM331 SNOSBI2C * JUNE 1999 * REVISED .
The LMx31 family of voltage-to-frequency converters are ideally suited for use in simple low-cost circuits for analog-to-digital conversion, precision.

LM231 Features

* 1 Ensured Linearity 0.01% Maximum

LM231 Applications

* Split or Single-Supply Operation
* Operates on Single 5-V Supply
* Pulse Output Compatible With All Logic Forms
* Excellent Temperature Stability: ±50 ppm/°C Maximum
* Low Power Consumption: 15 mW Typical at 5 V
* Wide Dynamic Range, 100 dB Minimum a

📥 Download Datasheet

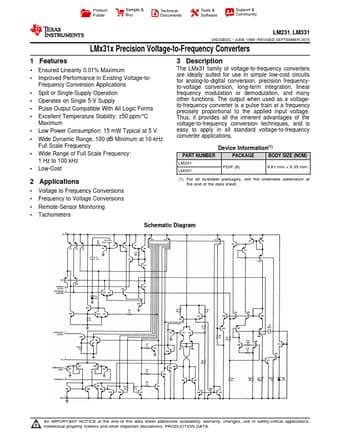

Preview of LM231 PDF
datasheet Preview Page 2 datasheet Preview Page 3
