LM27

The LM27 is Factory Preset Thermostat designed by Texas Instruments.

Product Overview

Texas Instruments

📥 Download Datasheet

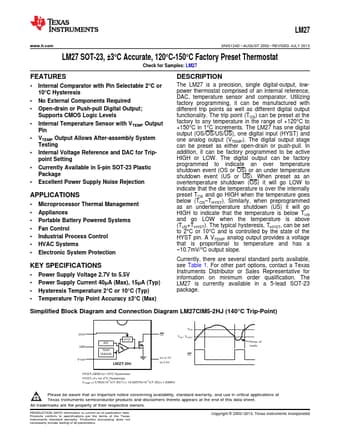

LM27 Factory Preset Thermostat by Texas Instruments - Datasheet Preview — Datasheet preview – LM27

Datasheet Details

Part number	LM27
Manufacturer	Texas Instruments
File Size	1.12 MB
Description	Factory Preset Thermostat
Datasheet	LM27-etcTI.pdf
Additional preview pages of the LM27 datasheet.

Product details

Description

The LM27 is a precision, single digital-output, lowpower thermostat comprised of an internal reference, DAC, temperature sensor and comparator.

Features

1.
2 Internal Comparator with Pin Selectable 2°C or 10°C Hysteresis.
No External Components Required.
Open-drain or Push-pull Digital Output; Supports CMOS Logic Levels.
Internal Temperature Sensor with VTEMP Output Pin.
VTEMP Output Allows After-assembly System Testing.
Internal Voltage Reference and DAC for Trip- point Setting.
Currently Available in 5-pin SOT-23 Plastic Package.
Excellent Power Supply Noise Rejection APPLI.
