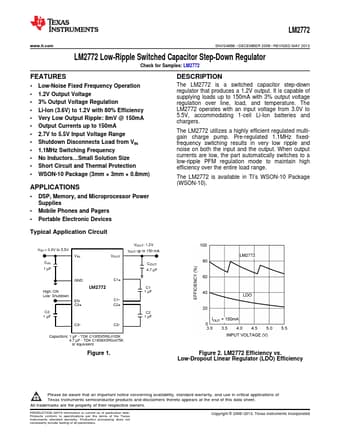

Additional preview pages of the LM2772 datasheet.

Product details

Description

The LM2772 is a switched capacitor step-down regulator that produces a 1.2V output.

Features

1.
2 Low-Noise Fixed Frequency Operation.
1.2V Output Voltage.
3% Output Voltage Regulation.
Li-Ion (3.6V) to 1.2V with 80% Efficiency.
Very Low Output Ripple: 8mV @ 150mA.
Output Currents up to 150mA.
2.7V to 5.5V Input Voltage Range.
Shutdown Disconnects Load from VIN.
1.1MHz Switching Frequency.
No Inductors…Small Solution Size.
Short Circuit and Thermal Protection.
WSON-10 Package (3mm.
