LM2901-N - Low-Power Low-Offset Voltage Quad Comparators

This page provides the datasheet information for the LM2901-N, a member of the LM239-N Low-Power Low-Offset Voltage Quad Comparators family.

Datasheet Summary

Description

The LMx39-N series consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV maximum for all four comparators.

These comparators were designed specifically to operate from a single power supply over a wide range of voltages.

Features

1 Wide Supply Voltage Range.
LM139/139A Series 2 to 36 VDC or ±1 to ±18 VDC.
LM2901-N: 2 to 36 VDC or ±1 to ±18 VDC.
LM3302-N: 2 to 28 VDC or ±1 to ±14 VDC.
Very Low Supply Current Drain (0.8 mA).
Independent of Supply Voltage.
Low Input Biasing Current: 25 nA.
Low Input Offset Current: ±5 nA.
Offset Voltage: ±3 mV.
Input Common-Mode Voltage Range Includes GND.
Differential Input Voltage Range Equa.

Datasheet Details

Part number	LM2901-N
Manufacturer	Texas Instruments
File Size	2.33 MB
Description	Low-Power Low-Offset Voltage Quad Comparators
Datasheet	LM2901-N Datasheet

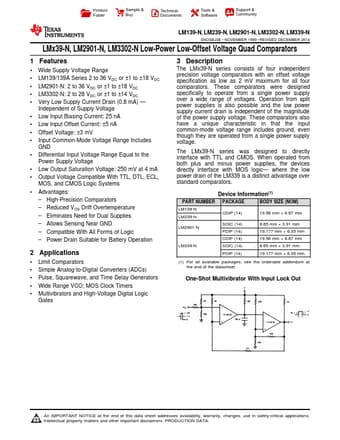

Additional preview pages of the LM2901-N datasheet.

📁 Similar Datasheet

LM2901-Q1 - General-Purpose High-Voltage Open-Drain Output Quad Comparators (RUNIC)

LM2901 - Quad Comparator (Fairchild Semiconductor)

LM2901 - Quad voltage comparator (NXP)

LM2901 - Quad Voltage Comparators (Intersil Corporation)

LM2901 - Low Power Low Offset Voltage Quad Comparators (National Semiconductor)

LM2901 - Low-power quad voltage comparator (STMicroelectronics)

LM2901 - Low Power Low Offset Voltage Quad Comparators (ART CHIP)

LM2901 - Single Supply Quad Comparators (ON Semiconductor)

LM2901 - Quad Single Supply Comparators (Motorola)

LM2901 - DUAL AND QUAD DIFFERENTIAL COMPARATORS (Diodes)

Full PDF Text Transcription

Click to expand full text

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM139-N, LM239-N, LM2901-N, LM3302-N, LM339-N SNOSBJ3E – NOVEMBER 1999 – REVISED DECEMBER 2014 LMx39-N, LM2901-N, LM3302-N Low-Power Low-Offset Voltage Quad Comparators 1 Features •1 Wide Supply Voltage Range • LM139/139A Series 2 to 36 VDC or ±1 to ±18 VDC • LM2901-N: 2 to 36 VDC or ±1 to ±18 VDC • LM3302-N: 2 to 28 VDC or ±1 to ±14 VDC • Very Low Supply Current Drain (0.
