LM2901AQ - AUTOMOTIVE COMPLIANT DUAL AND QUAD DIFFERENTIAL COMPARATORS

This page provides the datasheet information for the LM2901AQ, a member of the LM2901Q AUTOMOTIVE COMPLIANT DUAL AND QUAD DIFFERENTIAL COMPARATORS family.

Datasheet Summary

Description

The LM2901Q/LM2901AQ/LM2903Q/LM2903AQ series comparators consist of four and two independent precision voltage comparators with very low input offset voltage specification.

Features

  • Wide Power Supply Range:.
  • Single Supply: 2V to 36V.
  • Dual Supplies: ±1.0V to ±18V.
  • Very Low Supply Current Drain.
  • Independent of Supply Voltage.
  • LM2903Q: 0.6mA.
  • LM2901Q: 0.9mA.
  • Low Input Bias Current: 25nA.
  • Low Input Offset Current: ±5nA.
  • Typical Offset Voltage:.
  • Non-A Device: 2mV.
  • A Device: 1mV.
  • Common-Mode Input Voltage Range Includes Ground.
  • Differential Input Voltage Range Equal to the Power Supply Voltage.
  • Low Ou.

📥 Download Datasheet

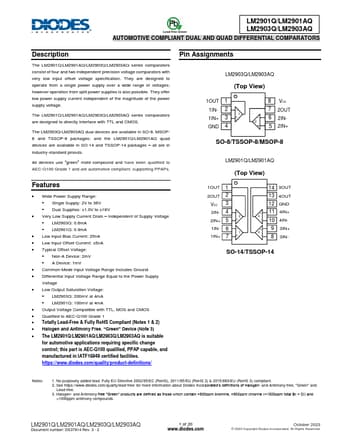

Datasheet preview – LM2901AQ

Datasheet Details

Part number LM2901AQ
Manufacturer DIODES
File Size 948.07 KB
Description AUTOMOTIVE COMPLIANT DUAL AND QUAD DIFFERENTIAL COMPARATORS
Datasheet download datasheet LM2901AQ Datasheet
Additional preview pages of the LM2901AQ datasheet.
