LM2904V Datasheet, Amplifiers, Texas Instruments

LM2904V Features

  • Amplifiers
  • Wide supply range of 3 V to 36 V (B, BA versions)
  • Quiescent current: 300 µA/ch (B, BA versions)
  • Unity-gain bandwidth of 1.2 MHz (B, BA versions)

PDF File Details

Part number:

LM2904V

Manufacturer:

Texas Instruments ↗

File Size:

3.63MB

Download:

📄 Datasheet

Description:

Industry-standard dual operational amplifiers. LM358, LM2904 SO (8) 5.20 mm × 5.30 mm The LM358B and LM2904B devices are the next-generation versions of the industry-standard o

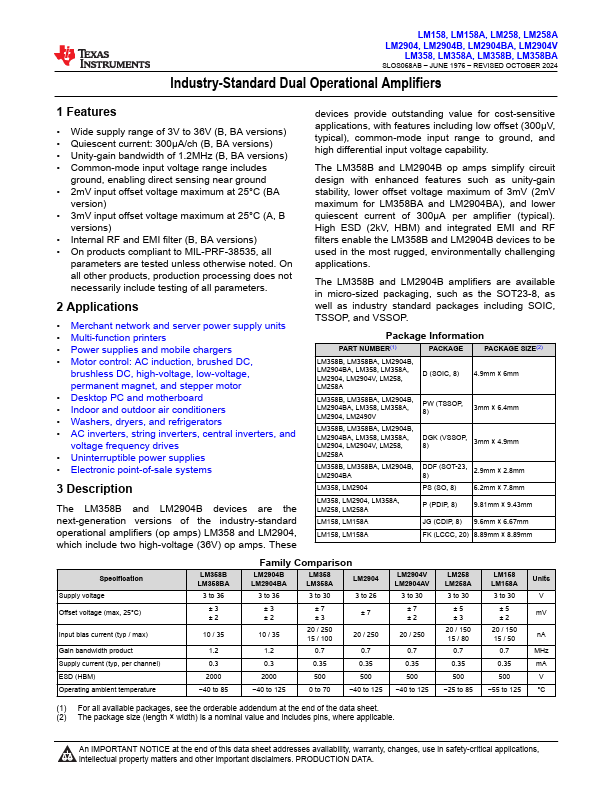

Datasheet Preview: LM2904V 📥 Download PDF (3.63MB)

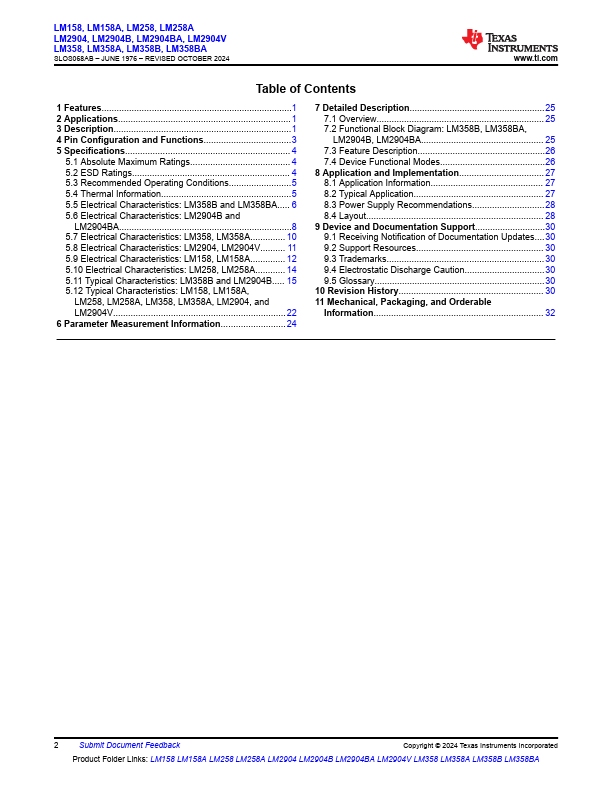

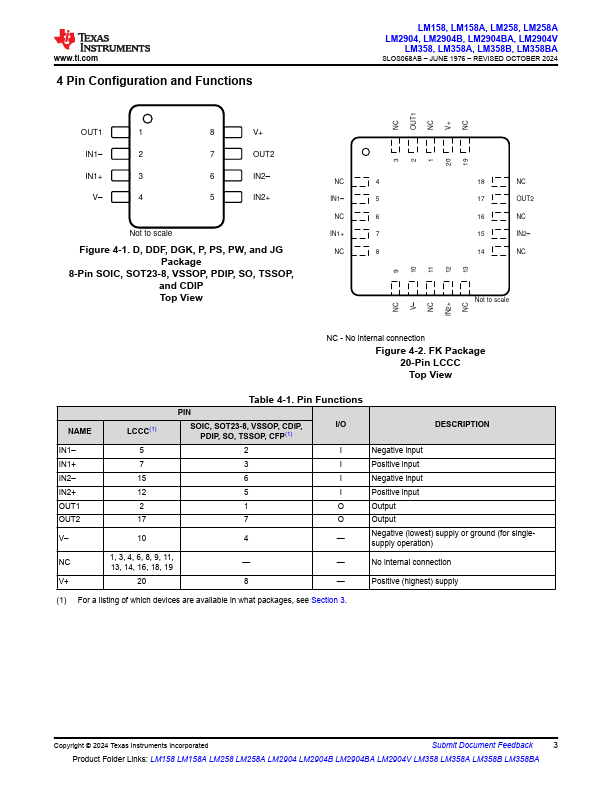

Page 2 of LM2904V Page 3 of LM2904V

LM2904V Application

  • Applications The LM358B and LM2904B amplifiers are available in micro-sized packaging, such as the SOT23-8, as well as industry standard packages i
