LM3151 - SIMPLE SWITCHER CONTROLLER

Texas Instruments

LM3151 Description

LM3151, LM3152, LM3153 www.ti.com SNVS562G * SEPTEMBER 2008 * REVISED MARCH 2011 LM3151/LM3152/LM3153 SIMPLE SWITCHER® CONTROLLER, .
The LM3151/2/3 SIMPLE SWITCHER Controller is an easy to use and simplified step down power controller capable of providing up to 12A of output current.

LM3151 Features

* 1
* 234 PowerWise™ Step-down Controller
* 6V to 42V Wide Input Voltage Range
* Fixed Output Voltage of 3.3V
* Fixed Switching Frequencies of 250 kHz/500 kHz/750 kHz
* No Loop Compensation Required
* Fully WEBENCH® Enabled
* Low External Componen

LM3151 Applications

* Telecom
* Networking Equipment
* Routers
* Security Surveillance

📥 Download Datasheet

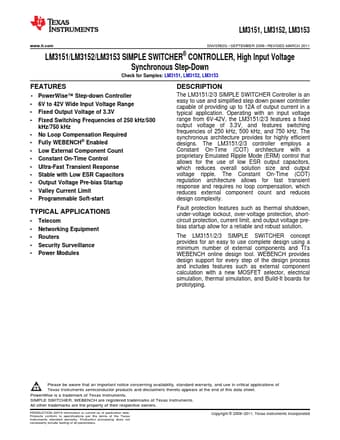

LM3151 Datasheet Preview — Preview of LM3151 PDF

Datasheet Details

Part number: LM3151
Manufacturer: Texas Instruments ↗
File Size: 1.07 MB
Datasheet: LM3151-etcTI.pdf
Description: SIMPLE SWITCHER CONTROLLER
