LM3152, LM3151 SIMPLE SWITCHER CONTROLLER

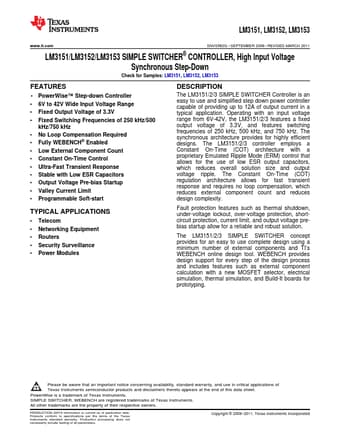

📥 Download Datasheet  Datasheet Preview Page 1

Description

LM3151, LM3152, LM3153 www.ti.com SNVS562G * SEPTEMBER 2008 * REVISED MARCH 2011 LM3151/LM3152/LM3153 SIMPLE SWITCHER® CONTROLLER, .
The LM3151/2/3 SIMPLE SWITCHER Controller is an easy to use and simplified step down power controller capable of providing up to 12A of output current.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM3152, LM3151. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LM3152, LM3151
Manufacturer
Texas Instruments ↗
File Size
1.07 MB
Datasheet
LM3151-etcTI.pdf
Description
SIMPLE SWITCHER CONTROLLER
Note
This datasheet PDF includes multiple part numbers: LM3152, LM3151.
Please refer to the document for exact specifications by model.

Features

* 1
* 234 PowerWise™ Step-down Controller
* 6V to 42V Wide Input Voltage Range
* Fixed Output Voltage of 3.3V
* Fixed Switching Frequencies of 250 kHz/500 kHz/750 kHz
* No Loop Compensation Required
* Fully WEBENCH® Enabled
* Low External Componen

Applications

* Telecom
* Networking Equipment
* Routers
* Security Surveillance
