LM330-N - 3-Terminal Positive Regulator

Texas Instruments

The LM330-N by Texas Instruments is a 3-Terminal Positive Regulator. Below is the official datasheet preview.

📥 Download Datasheet

LM330-N 3-Terminal Positive Regulator by Texas Instruments - Datasheet Preview — Official preview page of the LM330-N 3-Terminal Positive Regulator datasheet (Texas Instruments).

Datasheet Details

Part number	LM330-N
Manufacturer	Texas Instruments
File Size	1.17 MB
Description	3-Terminal Positive Regulator
Datasheet	LM330-N-etcTI.pdf

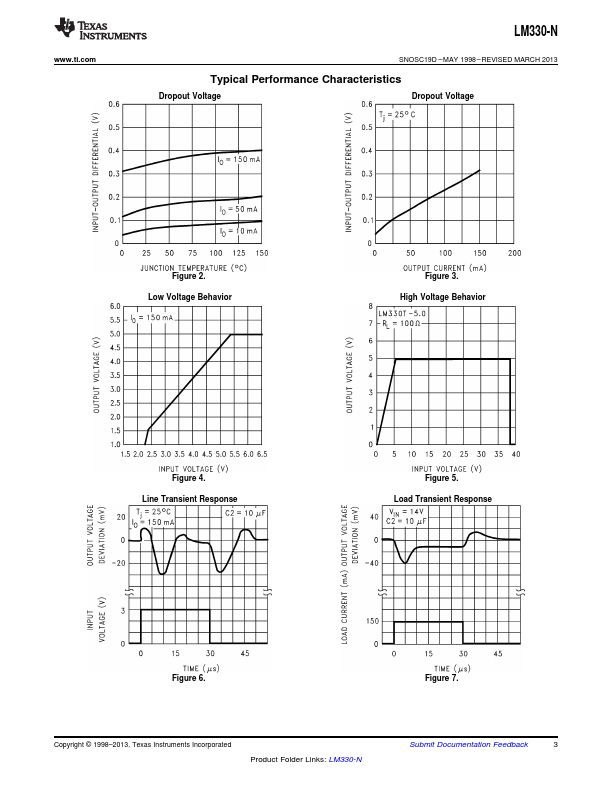

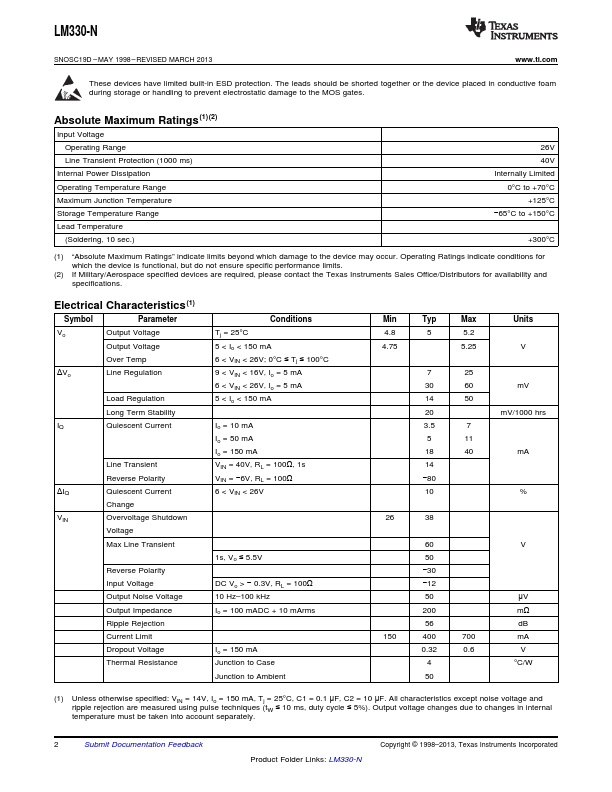

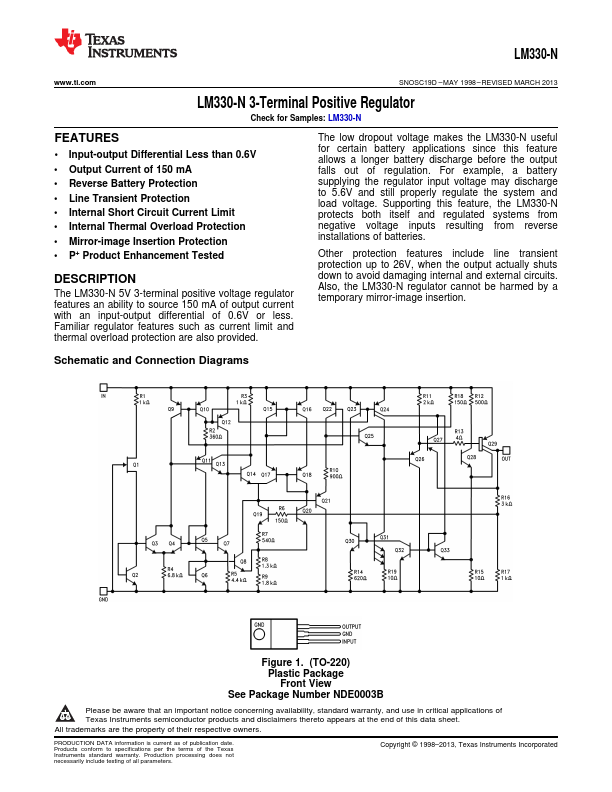

Additional preview pages of the LM330-N datasheet.

LM330-N Product details

Description

The LM330-N 5V 3-terminal positive voltage regulator

Features

1.
2 Input-output Differential Less than 0.6V.
Output Current of 150 mA.
Reverse Battery Protection.
Line Transient Protection.
Internal Short Circuit Current Limit.
Internal Thermal Overload Protection.
Mirror-image Insertion Protection.
P+ Product Enhancement Tested.
