LM358AN - Dual-Operational Amplifiers

This page provides the datasheet information for the LM358AN, a member of the LM358-N Dual-Operational Amplifiers family.

Product Overview

Texas Instruments

📥 Download Datasheet

Datasheet Details

Part number	LM358AN
Manufacturer	Texas Instruments
File Size	2.45 MB
Description	Dual-Operational Amplifiers
Datasheet	LM358AN Datasheet

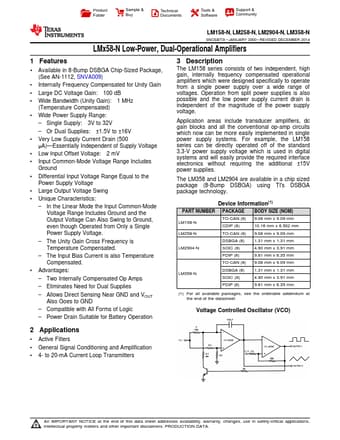

Additional preview pages of the LM358AN datasheet.

LM358AN Product details

Description

The LM158 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages.

Features

1 Available in 8-Bump DSBGA Chip-Sized Package, (See AN-1112, SNVA009).
Internally Frequency Compensated for Unity Gain.
Large DC Voltage Gain: 100 dB.
Wide Bandwidth (Unity Gain): 1 MHz (Temperature Compensated).
Wide Power Supply Range:.
Single Supply: 3V to 32V.
Or Dual Supplies: ±1.5V to ±16V.
Very Low Supply Current Drain (500 μA).
Essentially Independent of Supply Voltage.
Low Input Offset Voltage: 2 mV.
