LM358LV, LM321LV - Low Voltage Operational Amplifiers

Texas Instruments

📥 Download Datasheet

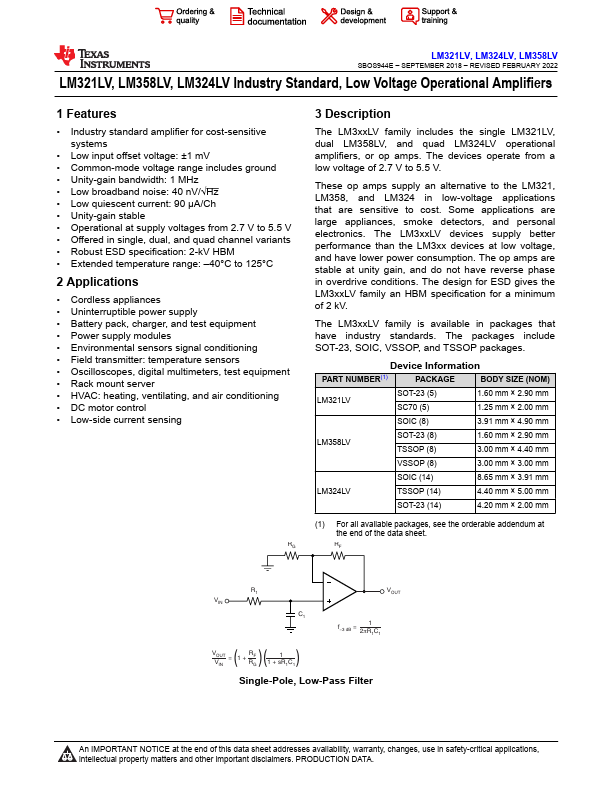

LM358LV Datasheet Preview — This datasheet PDF includes multiple part numbers: LM358LV, LM321LV. Please refer to the document for exact specifications by model.

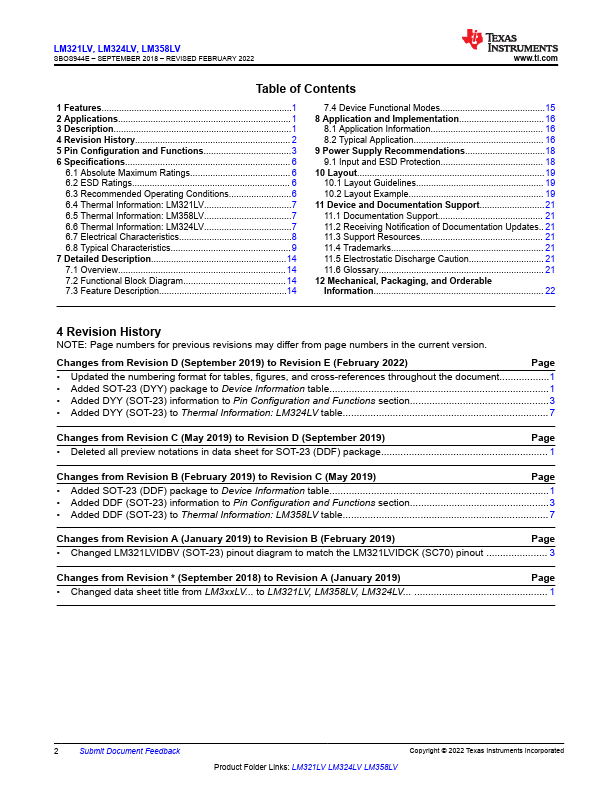

datasheet Preview Page 2

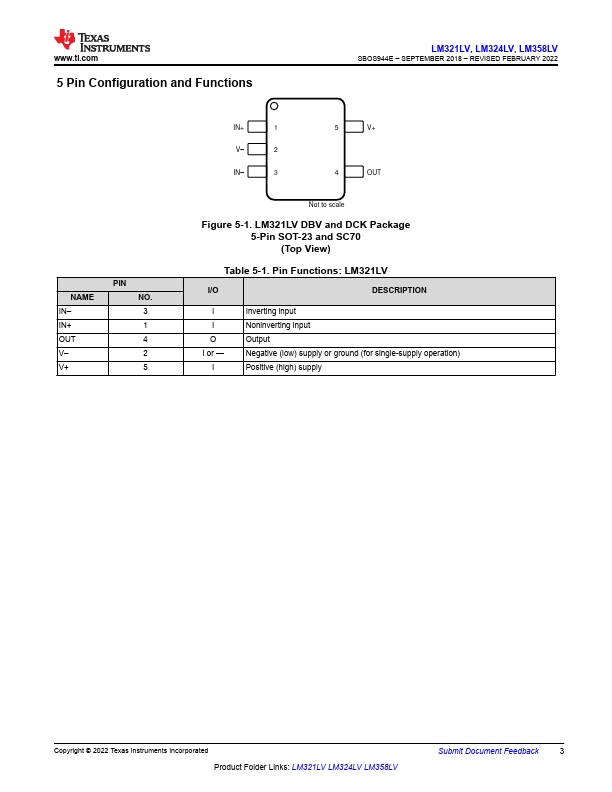

datasheet Preview Page 3

Datasheet Details

Part number	LM358LV, LM321LV
Manufacturer	Texas Instruments ↗
File Size	3.11 MB
Description	Low Voltage Operational Amplifiers
Datasheet	LM321LV-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM358LV, LM321LV. Please refer to the document for exact specifications by model.

LM358LV Product details

Description

The LM3xxLV family includes the single LM321LV, dual LM358LV, and quad LM324LV operational amplifiers, or op amps.

Features

Industry standard amplifier for cost-sensitive systems.
Low input offset voltage: ±1 mV.
Common-mode voltage range includes ground.
Unity-gain bandwidth: 1 MHz.
Low broadband noise: 40 nV/√Hz.
Low quiescent current: 90 µA/Ch.
Unity-gain stable.
Operational at supply voltages from 2.7 V to 5.5 V.
Offered in single, dual, and quad channel variants.
Robust ESD specification: 2-kV HBM.
Extended temper.
