LM3915N - Dot/Bar Display Driver

This page provides the datasheet information for the LM3915N, a member of the LM3915 Dot/Bar Display Driver family.

Datasheet Summary

Description

The LM3915 is a monolithic integrated circuit that senses analog voltage levels and drives ten LEDs, LCDs or vacuum fluorescent displays, providing a logarithmic 3 dB/step analog display.

One pin changes the display from a bar graph to a moving dot display.

Features

  • 1.
  • 2 3 dB/step, 30 dB Range.
  • Drives LEDs, LCDs, or Vacuum Fluorescents.
  • Bar or Dot Display Mode Externally Selectable by User.
  • Expandable to Displays of 90 dB.
  • Internal Voltage Reference from 1.2V to 12V.
  • Operates with Single Supply of 3V to 25V.
  • Inputs Operate Down to Ground.
  • Output Current Programmable from 1 mA to 30 mA.
  • Input Withstands ±35V without Damage or False Outputs.
  • Outputs are Current Regulated,.

📥 Download Datasheet

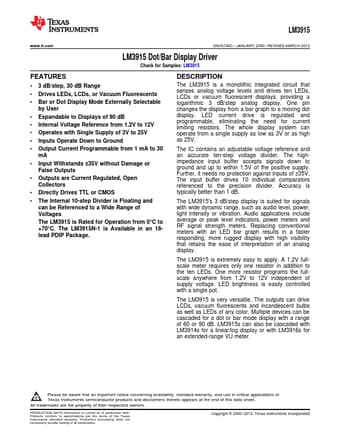

Datasheet preview – LM3915N

Datasheet Details

Part number LM3915N
Manufacturer Texas Instruments
File Size 1.39 MB
Description Dot/Bar Display Driver
Datasheet download datasheet LM3915N Datasheet
Additional preview pages of the LM3915N datasheet.

📁 Similar Datasheet

  • LM3915N - Dot/Bar Display Driver (National Semiconductor)
  • LM3915 - Dot/Bar Display Driver (National Semiconductor)
  • LM391 - Audio Power Driver (National Semiconductor)
  • LM39100 - 1A Low-Voltage Low-Dropout Regulator (HTC)
  • LM39101 - 1A Low-Voltage Low-Dropout Regulator (HTC)
  • LM39102 - 1A LOW-VOLTAGE LOW-DROPOUT REGULATOR (UTC)
  • LM39102 - 1A Low-Voltage Low-Dropout Regulator (HTC)
  • LM3911 - Temperature Controller (National Semiconductor)
  • LM3914 - Dot/Bar Display Driver (National Semiconductor)
  • LM3916 - Dot/Bar Display Driver (National Semiconductor)
Other Datasheets by Texas Instruments
  • LM3915 - Dot/Bar Display Driver
  • LM3914 - Dot/Bar Display Driver
  • LM3916 - Dot/Bar Display Driver
  • LM3900 - QUADRUPLE NORTON OPERATIONAL AMPLIFIER
  • LM392 - LOW-POWER OPERATIONAL AMPLIFIER AND VOLTAGE COMPARATOR
  • LM392-N - LOW-POWER OPERATIONAL AMPLIFIER AND VOLTAGE COMPARATOR
  • LM393 - Dual Differential Comparators
  • LM393-N - Low-Power Low-Offset Voltage Dual Comparators

Full PDF Text Transcription

Click to expand full text
LM3915 www.ti.com SNVS740C – JANUARY 2000 – REVISED MARCH 2013 LM3915 Dot/Bar Display Driver Check for Samples: LM3915 FEATURES 1 •2 3 dB/step, 30 dB Range • Drives LEDs, LCDs, or Vacuum Fluorescents • Bar or Dot Display Mode Externally Selectable by User • Expandable to Displays of 90 dB • Internal Voltage Reference from 1.2V to 12V • Operates with Single Supply of 3V to 25V • Inputs Operate Down to Ground • Output Current Programmable from 1 mA to 30 mA • Input Withstands ±35V without Damage or False Outputs • Outputs are Current Regulated, Open Collectors • Directly Drives TTL or CMOS • The Internal 10-step Divider is Floating and can be Referenced to a Wide Range of Voltages The LM3915 is Rated for Operation from 0°C to +70°C. The LM3915N-1 is Available in an 18lead PDIP Package.
