LM4128 - SOT-23 Precision Micropower Series Voltage Reference

Datasheet Summary

Description

Ideal for space critical applications, the LM4128 precision voltage reference is available in the SOT-23 surface-mount package.

Features

1.
2 Output Voltage Initial Accuracy 0.1%.
Low Temperature Coefficient 75 ppm/°C.
Low Supply Current, 60 µA.
Enable Pin Allowing a 3 µA Shutdown Mode.
Up to 20 mA Output Current.
Voltage Options 1.8V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V.
Custom Voltage Options Available (1.8V to 4.096V).
VIN Range of VREF + 400 mV to 5.5V @10 mA.
Stable with Low ESR Ceramic Capacitors.
5-Pin SOT-23 Package.
40.

Datasheet Details

Part number	LM4128
Manufacturer	Texas Instruments
File Size	1.15 MB
Description	SOT-23 Precision Micropower Series Voltage Reference
Datasheet	LM4128 Datasheet

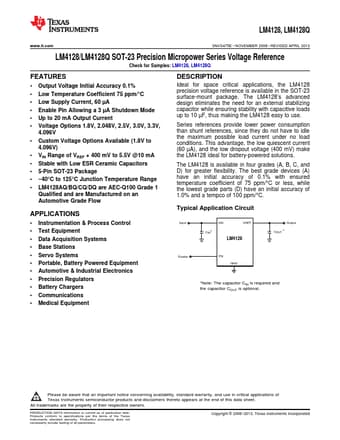

Additional preview pages of the LM4128 datasheet.

📁 Similar Datasheet

LM4128 - SOT-23 Precision Micropower Series Voltage Reference (National Semiconductor)

LM4120 - Precision Micropower Low Dropout Voltage Reference (National Semiconductor)

LM4121 - Precision Micropower Low Dropout Voltage Reference (National Semiconductor)

LM4125 - Precision Micropower Low Dropout Voltage Reference (National Semiconductor)

LM41 - Hardware Monitor with Thermal Diode Inputs and SensorPath Bus (National Semiconductor)

LM4130 - Precision Micropower Low Dropout Voltage Reference (National Semiconductor)

LM4132 - SOT-23 Precision Low Dropout Voltage Reference (National Semiconductor)

LM4140 - High Precision Low Noise Low Dropout Voltage (National Semiconductor)

LM4158D - NPN High Voltage Switching Transistor (Mai Electronics)

LM40 - Hardware Monitor (National Semiconductor)

Full PDF Text Transcription

Click to expand full text

LM4128, LM4128Q www.ti.com SNVS475E – NOVEMBER 2006 – REVISED APRIL 2013 LM4128/LM4128Q SOT-23 Precision Micropower Series Voltage Reference Check for Samples: LM4128, LM4128Q FEATURES 1 •2 Output Voltage Initial Accuracy 0.1% • Low Temperature Coefficient 75 ppm/°C • Low Supply Current, 60 µA • Enable Pin Allowing a 3 µA Shutdown Mode • Up to 20 mA Output Current • Voltage Options 1.8V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V • Custom Voltage Options Available (1.8V to 4.096V) • VIN Range of VREF + 400 mV to 5.
