LM40 - Hardware Monitor

Datasheet Summary

Description

The LM40 is a hardware monitor that measures 3 temperature zones, 5 voltages and has a single-wire interface compatible with National Semiconductor’s SensorPath bus.

SensorPath data is pulse width encoded, thereby allowing the LM40 to be easily connected to many general purpose micro-controllers.

Features

  • n SensorPath Interface.
  • 2 hardware programmable addresses n Voltage Monitoring.
  • 9-bit Σ∆ ADC Typical.

📥 Download Datasheet

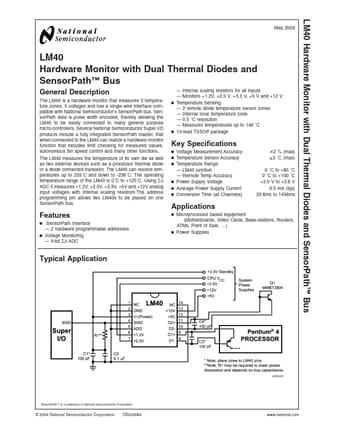

Datasheet preview – LM40

📁 Similar Datasheet

Other Datasheets by National Semiconductor
  • LM4040 - Precision Micropower Shunt Voltage
  • LM4041 - Precision Micropower Shunt Voltage Reference
  • LM4050 - Precision Micropower Shunt Voltage Reference
  • LM4051 - Precision Micropower Shunt Voltage Reference
  • LM41 - Hardware Monitor with Thermal Diode Inputs and SensorPath Bus
  • LM4120 - Precision Micropower Low Dropout Voltage Reference
  • LM4121 - Precision Micropower Low Dropout Voltage Reference
  • LM4125 - Precision Micropower Low Dropout Voltage Reference

Full PDF Text Transcription

Click to expand full text
LM40 Hardware Monitor with Dual Thermal Diodes and SensorPath™ Bus May 2004 LM40 Hardware Monitor with Dual Thermal Diodes and SensorPath™ Bus General Description The LM40 is a hardware monitor that measures 3 temperature zones, 5 voltages and has a single-wire interface compatible with National Semiconductor’s SensorPath bus. SensorPath data is pulse width encoded, thereby allowing the LM40 to be easily connected to many general purpose micro-controllers. Several National Semiconductor Super I/O products include a fully integrated SensorPath master, that when connected to the LM40 can realize a hardware monitor function that includes limit checking for measured values, autonomous fan speed control and many other functions.
