LM401102-Q-A-301 - PIN Diode Limiter

This page provides the datasheet information for the LM401102-Q-A-301, a member of the LM401102-Q-A-301-MA PIN Diode Limiter family.

Datasheet Summary

Description

The LM401102-Q-x-301 is a surface mount, passive two-stage power limiter which can operate over the frequency range of 400 to 100 MHz.

It is manufactured using a proven hybrid manufacturing process incorporating PIN Diodes and passive devices integrated onto a ceramic substrate.

Features

  • Surface Mount Limiter in 8 mm x 5 mm x 2.5 mm Package.
  • Higher Average Power Handling than Plastic: 100 W CW Power.
  • Lower Insertion Loss: 0.85 dB.
  • High IIP3: 19 dBm.
  • RoHS.
  • Compliant.

📥 Download Datasheet

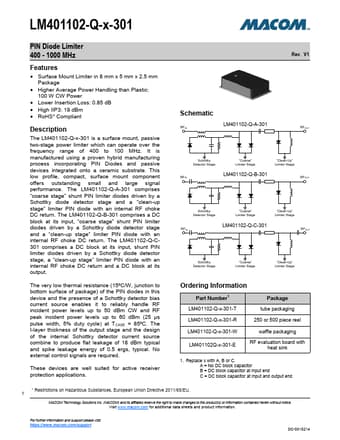

Datasheet preview – LM401102-Q-A-301

Datasheet Details

Part number LM401102-Q-A-301
Manufacturer MA-COM
File Size 923.50 KB
Description PIN Diode Limiter
Datasheet download datasheet LM401102-Q-A-301 Datasheet
Additional preview pages of the LM401102-Q-A-301 datasheet.

📁 Similar Datasheet

  • LM401102-Q-B-301 - Surface Mount PIN Diode Limiter (Aeroflex)
  • LM401102-Q-C-301 - Surface Mount PIN Diode Limiter (Aeroflex)
  • LM40 - Hardware Monitor (National Semiconductor)
  • LM40013NAM8A - N-Channel Power MOSFET (LEADPOWER)
  • LM40018NAM8A - N-Channel Enhancement Mode MOSFET (LEADPOWER)
  • LM40044A - 4.00 inch 4x4 Dot Matrix LED Display (LIGHTKEY)
  • LM4023-13 - THREE DIGIT DISPLAY (LEDTECH)
  • LM4024-11EWRN - (LM40xx-xxx) 0.4 Four Digital Display (Ledtech Electronics)
  • LM4030 - SOT-23 Ultra-High Precision Shunt Voltage Reference (Texas Instruments)
  • LM4034-11EWRN - (LM40xx-xxx) 0.4 Four Digital Display (Ledtech Electronics)
Other Datasheets by MA-COM

Full PDF Text Transcription

Click to expand full text
LM401102-Q-x-301 PIN Diode Limiter 400 - 1000 MHz Features  Surface Mount Limiter in 8 mm x 5 mm x 2.5 mm Package  Higher Average Power Handling than Plastic: 100 W CW Power  Lower Insertion Loss: 0.85 dB  High IIP3: 19 dBm  RoHS* Compliant Description The LM401102-Q-x-301 is a surface mount, passive two-stage power limiter which can operate over the frequency range of 400 to 100 MHz. It is manufactured using a proven hybrid manufacturing process incorporating PIN Diodes and passive devices integrated onto a ceramic substrate. This low profile, compact, surface mount component offers outstanding small and large signal performance.
