LM401102-Q-B-301 - Surface Mount PIN Diode Limiter

Datasheet Summary

Description

The LM401102-Q-B-301 & LM401102-Q-C-301 Surface Mount Silicon PIN Diode Limiter modules are passive two-stage power limiter which can operate over the frequency range of 400 to 1000 MHz.

Features

Surface Mount Limiter in Compact Package:.
8 mm L x 5 mm W x 2.5 mm H.
Incorporates PIN Limiter Diodes, DC Blocks, Schottky Diode & DC Return.
Wide Frequency Range (400 to 1000 MHz).
Higher Average Power Handling than Plastic-Packaged Limiters (100 W CW ).
Very Low Insertion Loss (0.3 dB).
Low Flat Leakage Power (18 dBm).
RoHS Compliant.

Datasheet Details

Part number	LM401102-Q-B-301
Manufacturer	Aeroflex
File Size	477.55 KB
Description	Surface Mount PIN Diode Limiter
Datasheet	LM401102-Q-B-301 Datasheet
Additional preview pages of the LM401102-Q-B-301 datasheet.

📁 Similar Datasheet

LM401102-Q-B-301 - PIN Diode Limiter (MA-COM)

LM401102-Q-A-301 - PIN Diode Limiter (MA-COM)

LM401102-Q-C-301 - PIN Diode Limiter (MA-COM)

LM40 - Hardware Monitor (National Semiconductor)

LM40013NAM8A - N-Channel Power MOSFET (LEADPOWER)

LM40018NAM8A - N-Channel Enhancement Mode MOSFET (LEADPOWER)

LM40044A - 4.00 inch 4x4 Dot Matrix LED Display (LIGHTKEY)

LM4023-13 - THREE DIGIT DISPLAY (LEDTECH)

LM4024-11EWRN - (LM40xx-xxx) 0.4 Four Digital Display (Ledtech Electronics)

LM4030 - SOT-23 Ultra-High Precision Shunt Voltage Reference (Texas Instruments)

Full PDF Text Transcription

Click to expand full text

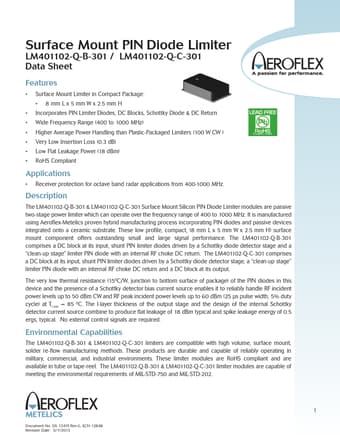

Surface Mount PIN Diode Limiter LM401102-Q-B-301 / LM401102-Q-C-301 Data Sheet Features • Surface Mount Limiter in Compact Package: • 8 mm L x 5 mm W x 2.5 mm H • Incorporates PIN Limiter Diodes, DC Blocks, Schottky Diode & DC Return • Wide Frequency Range (400 to 1000 MHz) • Higher Average Power Handling than Plastic-Packaged Limiters (100 W CW ) • Very Low Insertion Loss (0.3 dB) • Low Flat Leakage Power (18 dBm) • RoHS Compliant Applications • Receiver protection for octave band radar applications from 400-1000 MHz. Description The LM401102-Q-B-301 & LM401102-Q-C-301 Surface Mount Silicon PIN Diode Limiter modules are passive two-stage power limiter which can operate over the frequency range of 400 to 1000 MHz.
