LM401102-Q-C-301 Surface Mount PIN Diode Limiter

The LM401102-Q-B-301 & LM401102-Q-C-301 Surface Mount Silicon PIN Diode Limiter modules are passive two-stage power limiter which can operate over the frequency range of 400 to 1000 MHz. It is manufactured using Aeroflex-Metelics proven hybrid manufacturing process incorporating PIN diodes and passi.

LM401102-Q-C-301 Features

* Surface Mount Limiter in Compact Package:

* 8 mm L x 5 mm W x 2.5 mm H

* Incorporates PIN Limiter Diodes, DC Blocks, Schottky Diode & DC Return

* Wide Frequency Range (400 to 1000 MHz)

* Higher Average Power Handling than Plastic-Packaged Limiters (100 W CW

LM401102-Q-B-301-Aeroflex.pdf

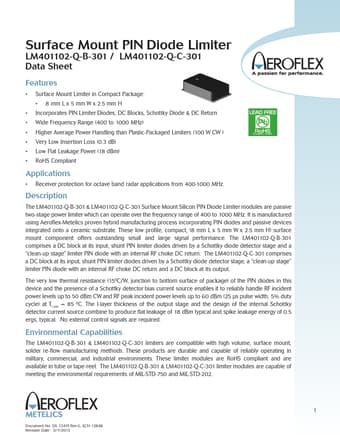

LM401102-Q-C-301 Datasheet Preview — This datasheet PDF includes multiple part numbers: LM401102-Q-C-301, LM401102-Q-B-301. Please refer to the document for exact specifications by model.

LM401102-Q-C-301 Datasheet Preview Page 2

LM401102-Q-C-301 Datasheet Preview Page 3

Datasheet Details

Part number:

LM401102-Q-C-301, LM401102-Q-B-301

Manufacturer:

Aeroflex

File Size:

477.55 KB

Description:

Surface mount pin diode limiter.

Note:

This datasheet PDF includes multiple part numbers: LM401102-Q-C-301, LM401102-Q-B-301.
Please refer to the document for exact specifications by model.
