LM4041 - Precision Micropower Shunt Voltage Reference

Datasheet Summary

Description

Ideal for space critical applications, the LM4041 precision voltage reference is available in the sub-miniature (3 mm x 1.3 mm) SOT-23 surface-mount package.

Features

  • n n n n Small packages: SOT-23, and TO-92 No output capacitor required Tolerates capacitive loads Reverse breakdown voltage options of 1.225V and adjustable Connection Diagrams SOT-23 DS011392-1 DS011392-40.

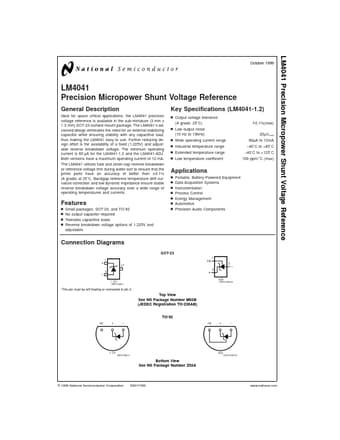

  • This pin must be left floating or connected to pin 2. Top View See NS Package Number M03B (JEDEC Registration TO-236AB) TO-92 DS011392-3 DS011392-32 Bottom View See NS Package Number Z03A © 1999 National Semiconductor Corporation DS011392 www. national. com LM4041 Ordering Inf.
