LM4040-EP - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE

Datasheet Summary

Description

The LM4040 series of shunt voltage references are versatile, easy-to-use references that cater to a vast array of applications.

The 2-pin fixed-output device requires no external capacitors for operation and is stable with all capacitive loads.

Features

  • 1.
  • Fixed Output Voltage of 2.5 V.
  • Tight Output Tolerances and Low Temperature Coefficient.
  • Max 0.65%, 100 ppm/°C.
  • Low Output Noise: 35 μVRMS Typ.
  • Wide Operating Current Range: 45 μA Typ to 15 mA.
  • Stable With All Capacitive Loads; No Output Capacitor Required.

📥 Download Datasheet

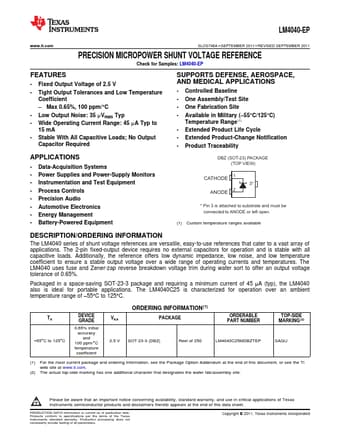

Datasheet preview – LM4040-EP

Datasheet Details

Part number LM4040-EP
Manufacturer Texas Instruments
File Size 948.98 KB
Description PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
Datasheet download datasheet LM4040-EP Datasheet
Additional preview pages of the LM4040-EP datasheet.
