LM4040A

PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE

LM4040A Features

* Fixed output voltages of 2.048V, 2.5V, 3V, 4.096V, 5V, 8.192V, and 10V

* Tight output tolerances and low temperature coefficient

* Maximum 0.1%, 100ppm/°C

* A Grade

* Maximum 0.2%, 100ppm/°C

* B Grade

* Maximum 0.5%, 100ppm/°C

* C Gra

LM4040A General Description

The LM4040 series of shunt voltage references are versatile, easy-to-use references that cater to a vast array of applications. The 2-pin fixed-output device requires no external capacitors for operation and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedan.

LM4040A Datasheet (1.70 MB)

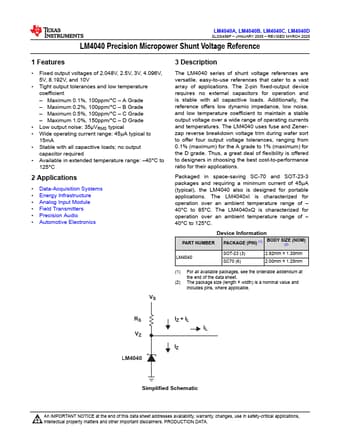

Preview of LM4040A PDF

Datasheet Details

Part number:

LM4040A

Manufacturer:

Texas Instruments ↗

File Size:

1.70 MB

Description:

Precision micropower shunt voltage reference.
LM4040A, LM4040B, LM4040C, LM4040D SLOS456P

* JANUARY 2005

* REVISED MARCH 2025 LM4040 Precision Micropower Shunt Voltage Reference 1.
