LM4041Q Datasheet PDF - Diodes AUTOMOTIVE GRADE 1.225V AND ADJUSTABLE PRECISION REFERENCE Specs

LM4041Q - AUTOMOTIVE GRADE 1.225V AND ADJUSTABLE PRECISION REFERENCE

Datasheet Summary

Description

The LM4041 is a bandgap circuit designed to achieve a precision micro-power voltage reference of 1.225 V; it is also available in an adjustable version.

The device is available in the small outline SOT23 surface mount package which is ideal for applications where space saving is important.

Features

No output capacitor required.
Output voltage tolerance.
LM4041CQ: ±0.5% at +25°C.
LM4041DQ: ±1.0% at +25°C.
Low output noise:.
10Hz to 10kHz 20µVrms.
Wide operating current range: 60µA to 12mA.
Extended temperature range: -40°C to +125°C.
Low temperature coefficient: 100ppm/°C (max).
Green Molding in small package SOT23.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Not.

Datasheet Details

Part number	LM4041Q
Manufacturer	DIODES
File Size	445.59 KB
Description	AUTOMOTIVE GRADE 1.225V AND ADJUSTABLE PRECISION REFERENCE
Datasheet	LM4041Q Datasheet

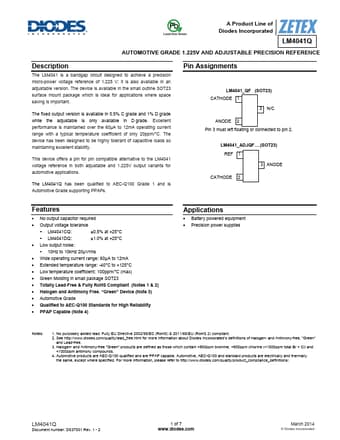

Additional preview pages of the LM4041Q datasheet.

📁 Similar Datasheet

LM4041 - Precision Micropower Shunt Voltage Reference (National Semiconductor)

LM4041 - Precision Micropower Shunt Voltage Reference (Micrel Semiconductor)

LM4041 - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE (Texas Instruments)

LM4041 - Precision Micro-Power Shunt Voltage References (ON Semiconductor)

LM4041 - Precision micropower shunt voltage reference (Zetex Semiconductors)

LM4041 - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE (Unisonic Technologies)

LM4041 - Improved Precision Micropower Shunt Voltage Reference (Maxim)

LM4041 - Precision micropower shunt voltage reference (STMicroelectronics)

LM4041-N - Precision Micropower Shunt Voltage (Texas Instruments)

LM4041-N-Q1 - Precision Micropower Shunt Voltage (Texas Instruments)

Full PDF Text Transcription

Click to expand full text

A Product Line of Diodes Incorporated LM4041Q AUTOMOTIVE GRADE 1.225V AND ADJUSTABLE PRECISION REFERENCE Description The LM4041 is a bandgap circuit designed to achieve a precision micro-power voltage reference of 1.225 V; it is also available in an adjustable version. The device is available in the small outline SOT23 surface mount package which is ideal for applications where space saving is important. The fixed output version is available in 0.5% C grade and 1% D grade while the adjustable is only available in D grade. Excellent performance is maintained over the 60µA to 12mA operating current range with a typical temperature coefficient of only 20ppm/°C. The device has been designed to be highly tolerant of capacitive loads so maintaining excellent stability.
