LM4041-N-Q1 Datasheet PDF - Texas Instruments Precision Micropower Shunt Voltage Specs

LM4041-N-Q1 - Precision Micropower Shunt Voltage

This page provides the datasheet information for the LM4041-N-Q1, a member of the LM4041-N Precision Micropower Shunt Voltage family.

Datasheet Summary

Description

Excellent for space-critical applications, the LM4041N LM4041-N-Q1 precision voltage reference is available in the sub-miniature SC70 and SOT-23 surface-mount packages.

Features

Updated the numbering format for tables, figures, and cross-references throughout the document.
Qualified for automotive.

Datasheet Details

Part number	LM4041-N-Q1
Manufacturer	Texas Instruments
File Size	1.79 MB
Description	Precision Micropower Shunt Voltage
Datasheet	LM4041-N-Q1 Datasheet
Additional preview pages of the LM4041-N-Q1 datasheet.

📁 Similar Datasheet

LM4041 - Precision Micropower Shunt Voltage Reference (National Semiconductor)

LM4041 - Precision Micropower Shunt Voltage Reference (Micrel Semiconductor)

LM4041 - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES (Diodes)

LM4041 - Precision Micro-Power Shunt Voltage References (ON Semiconductor)

LM4041 - Precision micropower shunt voltage reference (Zetex Semiconductors)

LM4041 - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE (Unisonic Technologies)

LM4041 - Improved Precision Micropower Shunt Voltage Reference (Maxim)

LM4041 - Precision micropower shunt voltage reference (STMicroelectronics)

LM4041Q - AUTOMOTIVE GRADE 1.225V AND ADJUSTABLE PRECISION REFERENCE (Diodes)

LM4040 - Precision Micropower Shunt Voltage (National Semiconductor)

Full PDF Text Transcription

Click to expand full text

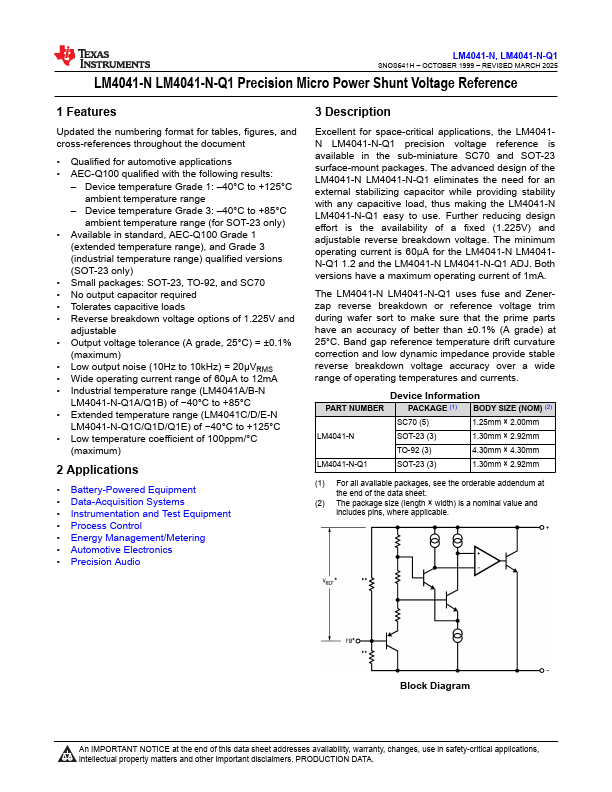

LM4041-N, LM4041-N-Q1 SNOS641H – OCTOBER 1999 – REVISED MARCH 2025 LM4041-N LM4041-N-Q1 Precision Micro Power Shunt Voltage Reference 1 Features Updated the numbering format for tables, figures, and cross-references throughout the document • Qualified for automotive applications • AEC-Q100 qualified with the following results: – Device temperature Grade 1: –40°C to +125°C ambient temperature range – Device temperature Grade 3: –40°C to +85°C ambient temperature range (for SOT-23 only) • Available in standard, AEC-Q100 Grade 1 (extended temperature range), and Grade 3 (industrial temperature range) qualified versions (SOT-23 only) • Small packages: SOT-23, TO-92, and SC70 • No output capacitor required • Tolerates capacitive loads • Reverse breakdown voltage options of 1.
