LM4040-N-Q1 - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE

This page provides the datasheet information for the LM4040-N-Q1, a member of the LM4040-N PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE family.

Datasheet Summary

Description

Designed for space-critical applications, the LM4040N precision voltage reference is available in small SC70 and SOT-23 surface-mount package.

Features

  • LM4040-N-Q1 AEC Q-100 qualified for automotive.

📥 Download Datasheet

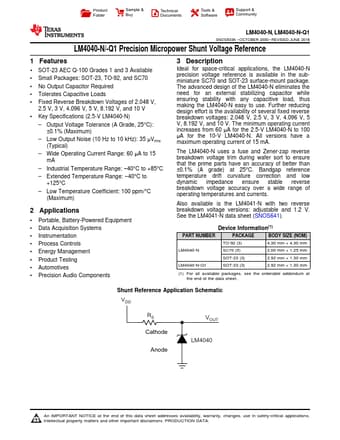

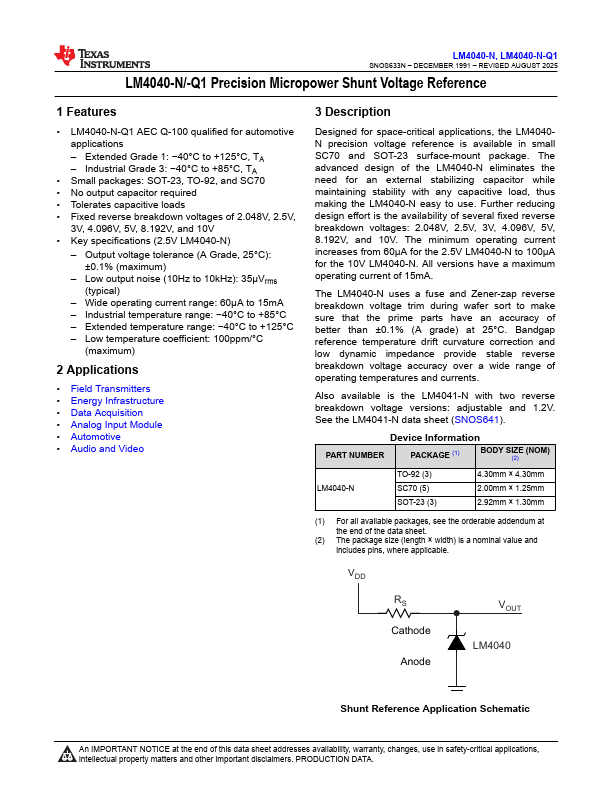

Datasheet preview – LM4040-N-Q1

Datasheet Details

Part number LM4040-N-Q1
Manufacturer Texas Instruments
File Size 1.80 MB
Description PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
Datasheet download datasheet LM4040-N-Q1 Datasheet

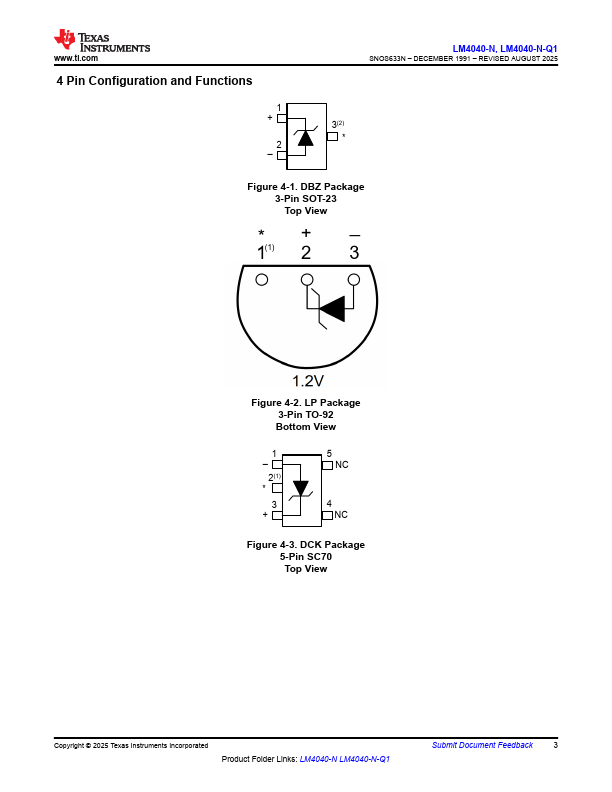

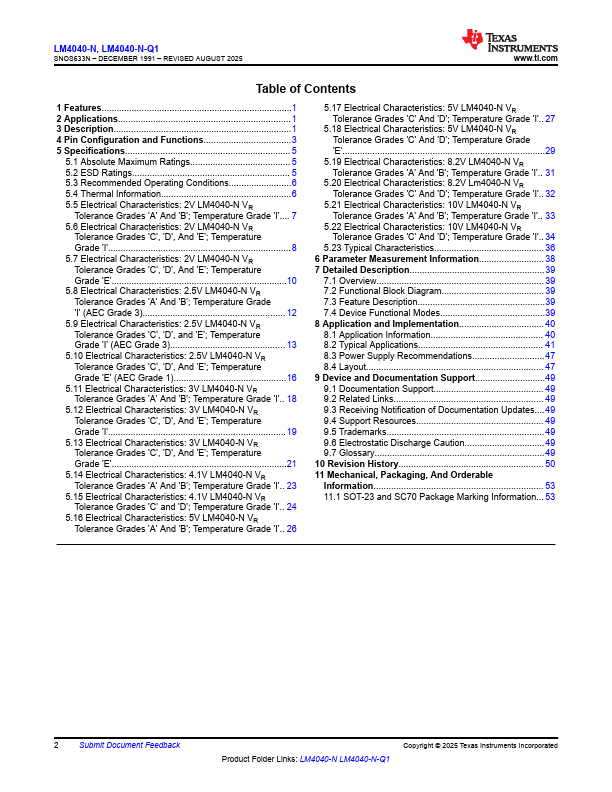

Additional preview pages of the LM4040-N-Q1 datasheet.

📁 Similar Datasheet

  • LM4040 - Precision Micropower Shunt Voltage (National Semiconductor)
  • LM4040 - Precision Micropower Shunt Voltage (Micrel Semiconductor)
  • LM4040 - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES (Diodes)
  • LM4040 - Precision micropower shunt voltage references (Zetex Semiconductors)
  • LM4040 - Improved Precision Micropower Shunt Voltage Reference (Maxim Integrated)
  • LM4040 - Precision Micro-Power Shunt Voltage References (ON Semiconductor)
  • LM4040 - Precision micropower shunt voltage reference (STMicroelectronics)
  • LM4040A - Precision micropower shunt voltage reference (STMicroelectronics)
  • LM4040B - Precision micropower shunt voltage reference (STMicroelectronics)
  • LM4040C - Precision micropower shunt voltage reference (STMicroelectronics)
Other Datasheets by Texas Instruments
  • LM4040-N - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
  • LM4040-EP - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
  • LM4040 - Precision Micropower Shunt Voltage Reference
  • LM4040A - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
  • LM4040B - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
  • LM4040C - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
  • LM4040D - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
  • LM4041 - PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE

Full PDF Text Transcription

Click to expand full text
LM4040-N, LM4040-N-Q1 SNOS633N – DECEMBER 1991 – REVISED AUGUST 2025 LM4040-N/-Q1 Precision Micropower Shunt Voltage Reference 1 Features • LM4040-N-Q1 AEC Q-100 qualified for automotive applications – Extended Grade 1: −40°C to +125°C, TA – Industrial Grade 3: −40°C to +85°C, TA • Small packages: SOT-23, TO-92, and SC70 • No output capacitor required • Tolerates capacitive loads • Fixed reverse breakdown voltages of 2.048V, 2.5V, 3V, 4.096V, 5V, 8.192V, and 10V • Key specifications (2.5V LM4040-N) – Output voltage tolerance (A Grade, 25°C): ±0.
