LM49200 - Stereo Class AB Audio Subsystem

Texas Instruments

📥 Download Datasheet

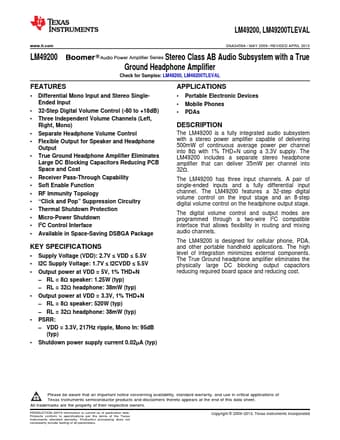

LM49200 Datasheet Preview — Preview of LM49200 PDF

Datasheet Details

Part number: LM49200
Manufacturer: Texas Instruments ↗
File Size: 1.37 MB
Datasheet: LM49200-etcTI.pdf
Description: Stereo Class AB Audio Subsystem

LM49200 Product details

Description

The LM49200 is a fully integrated audio subsystem with a stereo power amplifier capable of delivering 500mW of continuous average power per channel into 8Ω with 1% THD+N using a 3.3V supply.

Features

1.
2 Differential Mono Input and Stereo SingleEnded Input.
32-Step Digital Volume Control (-80 to +18dB).
Three Independent Volume Channels (Left, Right, Mono).
Separate Headphone Volume Control.
Flexible Output for Speaker and Headphone Output.
True Ground Headphone Amplifier Eliminates Large DC Blocking Capacitors Reducing PCB Space and Cost.
Receiver Pass-Through Capability.
Soft Enable Function.
RF Immunity Topol.
