LM4920 - Stereo Headphone Amplifier

National Semiconductor

📥 Download Datasheet

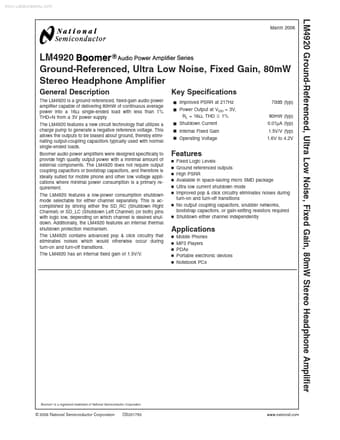

LM4920 Datasheet Preview — Preview of LM4920 PDF

Datasheet Details

Part number: LM4920
Manufacturer: National Semiconductor
File Size: 1.23 MB
Datasheet: LM4920_NationalSemiconductor.pdf
Description: Stereo Headphone Amplifier

LM4920 Product details

Description

The LM4920 is a ground referenced, fixed-gain audio power amplifier capable of delivering 80mW of continuous average power into a 16Ω single-ended load with less than 1% THD+N from a 3V power supply.

Features

a new circuit technology that utilizes a charge pump to generate a negative reference voltage. This allows the outputs to be biased about ground, thereby eliminating output-coupling capacitors typically used with normal single-ended loads. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. The LM4920 does not require output coupling capacitors or bootstrap capacitors, and therefore is ideally suited for mobi.
