LM5060

High-Side Protection Controller

LM5060 Features

* 1 Available in Automotive Grade / AEC Q-100

* Wide operating input voltage range: 5.5 V to 65 V

* Functional safety capable

* Documentation available to aid functional safety system design

* Less than 15-µA quiescent current in disabled mode

* Control

LM5060 General Description

The LM5060 high-side protection controller provides intelligent control of a high-side N-channel MOSFET during normal on/off transitions and fault conditions. In-rush current is controlled by the nearly constant rise time of the output voltage. A POWER GOOD output indicates when the output voltage r.

LM5060 Datasheet (1.81 MB)

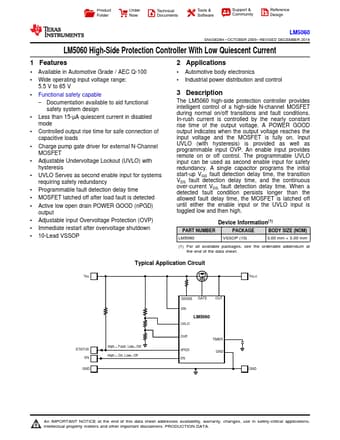

Preview of LM5060 PDF

Datasheet Details

Part number:

LM5060

Manufacturer:

Texas Instruments ↗

File Size:

1.81 MB

Description:

High-side protection controller.
