LM5001 - Regulator

National Semiconductor

Datasheet Details

Part number	LM5001
Manufacturer	National Semiconductor ↗
File Size	403.76 KB
Description	Regulator
Datasheet	LM5001_NationalSemiconductor.pdf

The LM5001 high voltage switch mode regulator

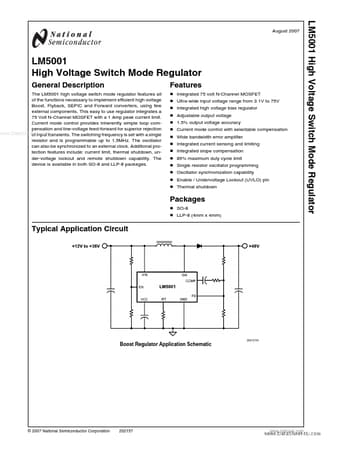

all of the functions necessary to implement efficient high voltage Boost, Flyback, SEPIC and Forward converters, using few external components. This easy to use regulator integrates a 75 Volt N-Channel MOSFET with a 1 Amp peak current limit. Current mode control provides inherently simple loop compensation and line-voltage feed-forward for superior rejection www. DataSheet4U. com of input transients. The switching frequency is set with a single resistor and is programmable up to 1.5MHz. The oscill.
