LM5001-Q1, LM5001 - Regulator

LM5001-Q1 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM5001, LM5001-Q1 SNVS484H * JANUARY 2007 * .
The LM5001 high-voltage switch-mode regulator features all of the functions necessary to implement efficient high-voltage Boost, Flyback, SEPIC and Fo.

LM5001-Q1 Features

* 1 AEC-Q100 Qualified (TJ =
* 40°C to 125°C)
* Integrated 75-V N-Channel MOSFET
* Ultra-Wide Input Voltage Range from 3.1 V to 75 V
* Integrated High Voltage Bias Regulator
* Adjustable Output Voltage
* 1.5% Output Voltage Accuracy
* Cur

LM5001-Q1 Applications

* DC-DC Power Supplies for Industrial, Communications, and Automotive Applications

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM5001-Q1, LM5001. Please refer to the document for exact specifications by model.

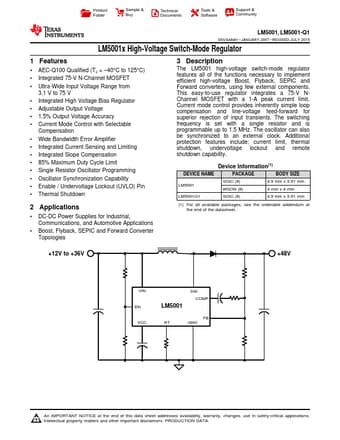

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM5001-Q1, LM5001
Manufacturer
Texas Instruments ↗
File Size
1.32 MB
Datasheet
LM5001-etcTI.pdf
Description
Regulator
Note
This datasheet PDF includes multiple part numbers: LM5001-Q1, LM5001.
Please refer to the document for exact specifications by model.
