LM5001 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM5001, LM5001-Q1 SNVS484H * JANUARY 2007 * .
The LM5001 high-voltage switch-mode regulator features all of the functions necessary to implement efficient high-voltage Boost, Flyback, SEPIC and Fo.

LM5001 Features

* 1 AEC-Q100 Qualified (TJ =
* 40°C to 125°C)
* Integrated 75-V N-Channel MOSFET
* Ultra-Wide Input Voltage Range from 3.1 V to 75 V
* Integrated High Voltage Bias Regulator
* Adjustable Output Voltage
* 1.5% Output Voltage Accuracy
* Cur

LM5001 Applications

* DC-DC Power Supplies for Industrial, Communications, and Automotive Applications

📥 Download Datasheet

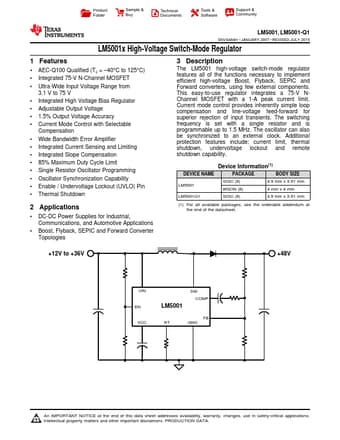

Preview of LM5001 PDF
